F12-1000-C2 - Triad Magnetics

Description: XFRMR LAMINATED 12VA THRU HOLE

Download F12-1000-C2 Model

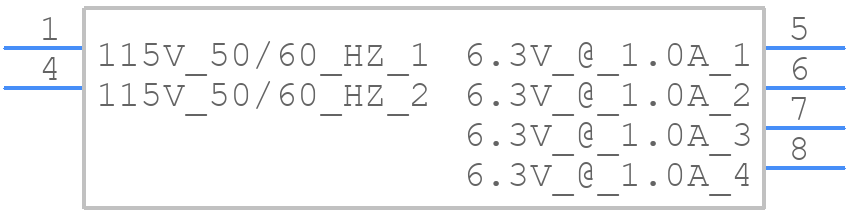

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

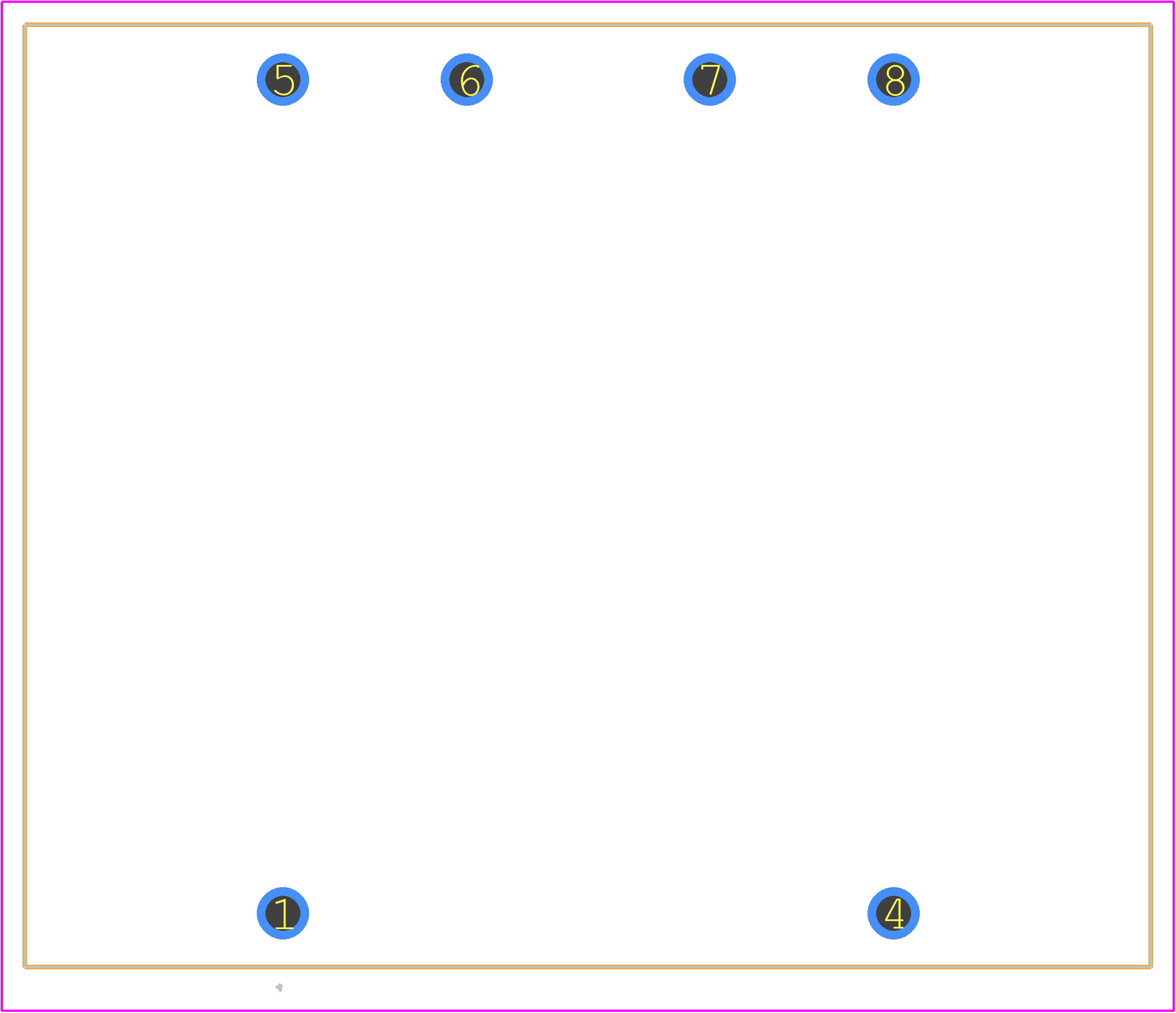

F12-1000-C2 - Triad Magnetics PCB footprint - Other - Other - F12-1000-C2-2
click to zoom
3D Models
F12-1000-C2 - Triad Magnetics  - 3D model - Other - F12-1000-C2-2
click to zoom

F12-1000-C2 Details

  • Manufacturer Part Number:

    F12-1000-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    36.51 mm

  • Input Voltage-Nom:

    115 V

  • Isolation Voltage:

    1500 V

  • Length:

    47.63 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    2 A

  • Output Voltage 1:

    6.3 V

  • Output Voltage 2:

    6.3 V

  • Primary Rating:

    SINGLE 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    12 VA

  • Width:

    39.69 mm

F12-1000-C2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the F12-1000-C2 is -40°C to 125°C, with a maximum storage temperature of 150°C.
  • While the F12-1000-C2 is designed for 1000Vrms isolation, it is not recommended for high-voltage applications above 1500Vrms. For higher voltage applications, consider using a transformer with a higher isolation voltage rating.
  • To ensure proper creepage and clearance distances, follow the guidelines in the relevant safety standards (e.g., IEC 60950-1 or UL 60950-1) and maintain a minimum creepage distance of 4.5mm and clearance distance of 3.2mm between the primary and secondary windings.
  • The F12-1000-C2 is designed for Class I applications, but it can be used in Class II or Class III applications with proper design and certification. Consult with a qualified engineer or safety expert to ensure compliance with relevant safety standards.
  • To minimize electromagnetic interference (EMI) and ensure proper operation, follow good PCB layout practices, such as keeping the primary and secondary windings separate, using a ground plane, and maintaining a minimum spacing of 1.5mm between the transformer and other components.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F12-1000-C2 Overview

Use the download button to access the F12-1000-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F12-1, or try a keyword search, such as Power/Mains Transformers
