- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for F12-200-C2-B
- Part Number F12-200-C2-B
- Manufacturer Triad Magnetics
- Pin Count 6
- Part Category Transformer
- Package Category Other

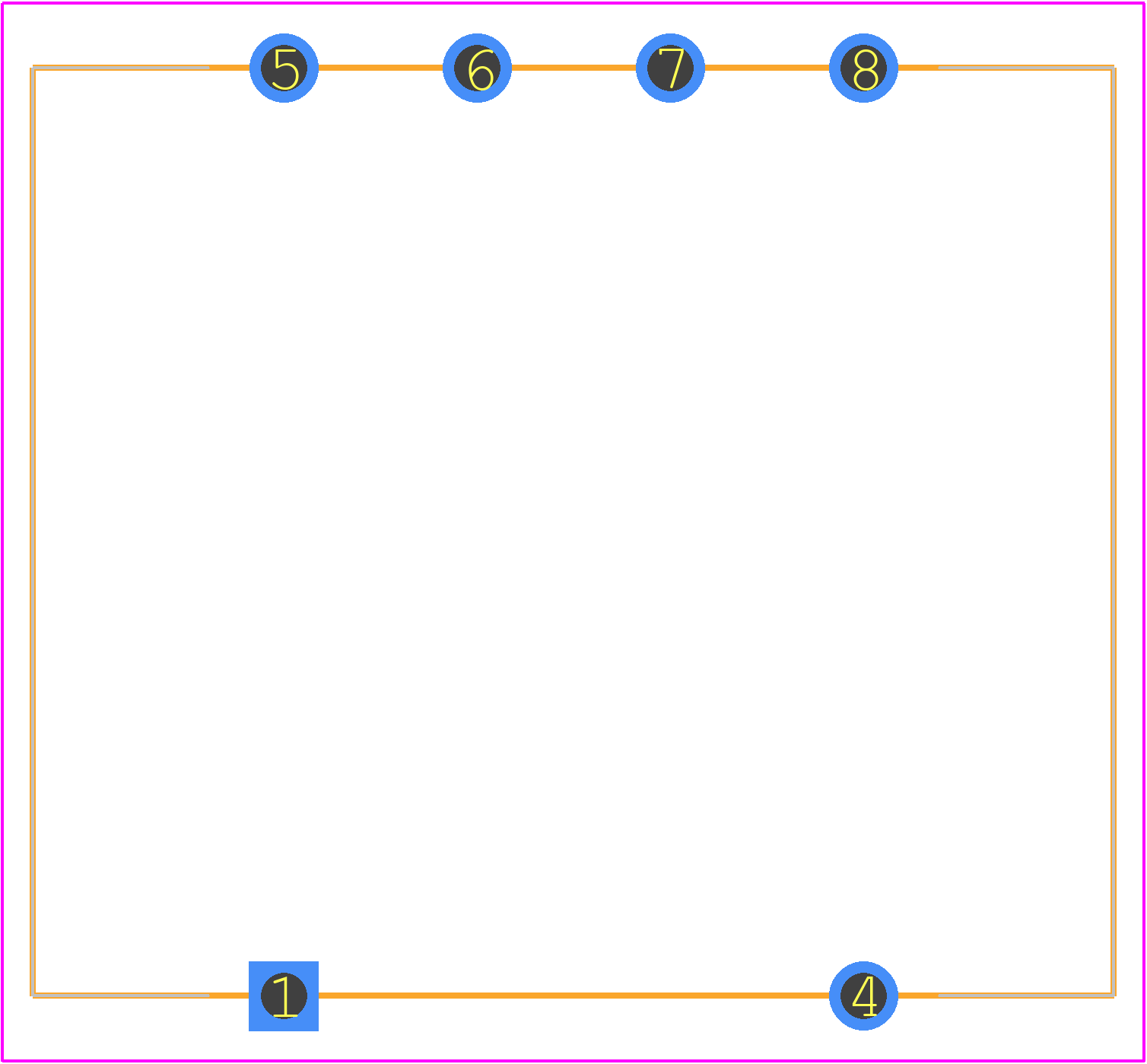

- Footprint Name Other - F12-200-C2-B-2
- Released Date May 29, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
F12-200-C2-B Details
-
Manufacturer Part Number:
F12-200-C2-B
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
Mainland China, Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8504.31.40.35
-
Manufacturer:
Triad Magnetics
-
YTEOL:
5.83
-
Center Tap Feature 1:
NO
-
Center Tap Feature 2:
NO
F12-200-C2-B Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the F12-200-C2-B is -40°C to 125°C, with a maximum storage temperature of 150°C.
-
Yes, the F12-200-C2-B is designed to withstand high-vibration environments and meets the requirements of IEC 60068-2-6 for vibration testing.
-
Yes, the F12-200-C2-B is designed to operate in humid environments and meets the requirements of IEC 60068-2-78 for humidity testing.
-
The F12-200-C2-B can operate up to an altitude of 10,000 feet (3,048 meters) without derating.
-
Yes, the F12-200-C2-B is designed to meet the requirements of UL 508 and can be used in a Class I, Division 2 hazardous location.
Trust Checks
Expert Contribution
System Verified
Community Approved
F12-200-C2-B Overview
Use the download button to access the F12-200-C2-B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F12-2,
or try a keyword search, such as Power/Mains Transformers
