F1455NKGK - Renesas Electronics

Description: The F1455 is a High-Gain / High-Linearity 1400MHz to 2300MHz TX Variable Gain Amplifier used in transmitter applications. The F1455 TX VGA provides 32dB maximum gain with +39dBm OIP3 and 4dB noise figure. Up to 29.5dB gain control is achieved using the combination of a digital step attenuator (DSA) plus KLIN™ RF variable gain amplifier gain adjustment. This device uses a single 5V supply and 216mA of ICC. This device is packaged in a 6 x 6 mm, 28-QFN with 50Ω single-ended RF input and RF output impedances f

Download F1455NKGK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

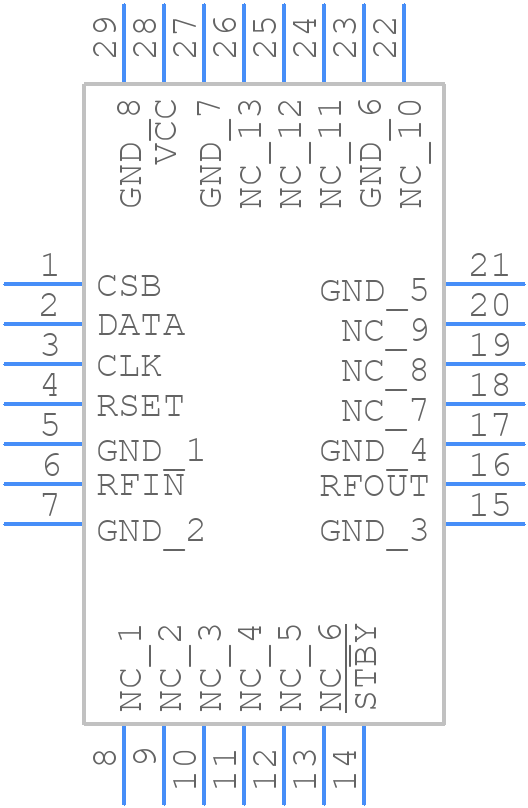

F1455NKGK - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
F1455NKGK - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NKG28
click to zoom
3D Models
F1455NKGK - Renesas Electronics - 3D model - Quad Flat No-Lead - NKG28
click to zoom

F1455NKGK Details

  • Manufacturer Part Number:

    F1455NKGK

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    VFQFPN

  • Pin Count:

    28

  • Manufacturer Package Code:

    NKG28

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • RF/Microwave Device Type:

    VARIABLE GAIN AMPLIFIER

  • Terminal Finish:

    Tin (Sn)

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F1455NKGK Overview

Use the download button to access the F1455NKGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F1455, or try a keyword search, such as RF/Microwave Amplifiers
