- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for F16-070-C2
- Part Number F16-070-C2
- Manufacturer Triad Magnetics
- Pin Count 6
- Part Category Transformer
- Package Category Other

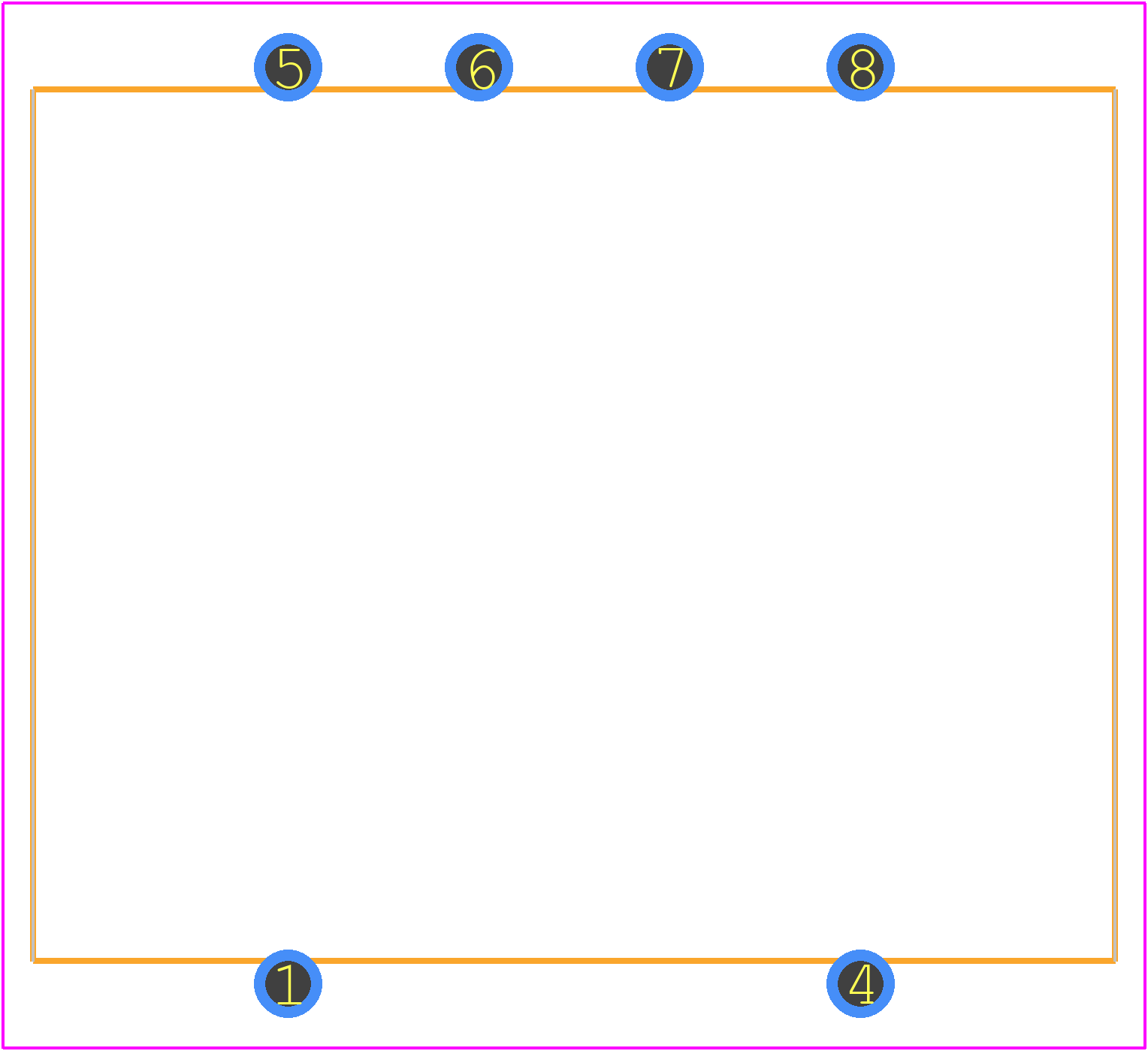

- Footprint Name Other - F16-070-C2-2
- Released Date Oct 9, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
F16-070-C2 Details
-
Manufacturer Part Number:
F16-070-C2
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8504.31.40.35
-
Manufacturer:
Triad Magnetics
-
YTEOL:
5.83
-
Approvals:
CUL; UL
-
Center Tap Feature 1:
NO
F16-070-C2 Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the F16-070-C2 is -40°C to 125°C, with a maximum storage temperature of 150°C.
-
While the F16-070-C2 has a high voltage rating, it is not designed for high-voltage applications. It is recommended to use a transformer with a higher voltage rating, such as the F16-070-C3 or F16-070-C4, for high-voltage applications.
-
The maximum power rating for the F16-070-C2 is 16VA, with a maximum current rating of 70mA.
-
Yes, the F16-070-C2 is suitable for use in switching power supplies, but it is recommended to ensure that the transformer is properly designed and tested for the specific application.
-
The lead time for the F16-070-C2 can vary depending on the quantity and availability. Typically, the lead time is around 4-6 weeks for standard quantities.
Trust Checks
Expert Contribution
System Verified
Community Approved
F16-070-C2 Overview

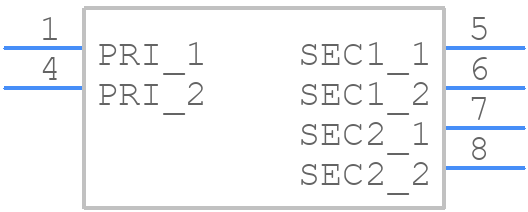

Use the download button to access the F16-070-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F16-0,
or try a keyword search, such as Power/Mains Transformers
