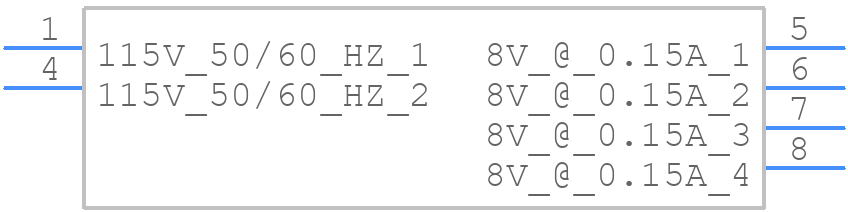

F16-150-C2 footprint, schematic symbol and 3D model by Triad Magnetics

Symbol

click to zoom

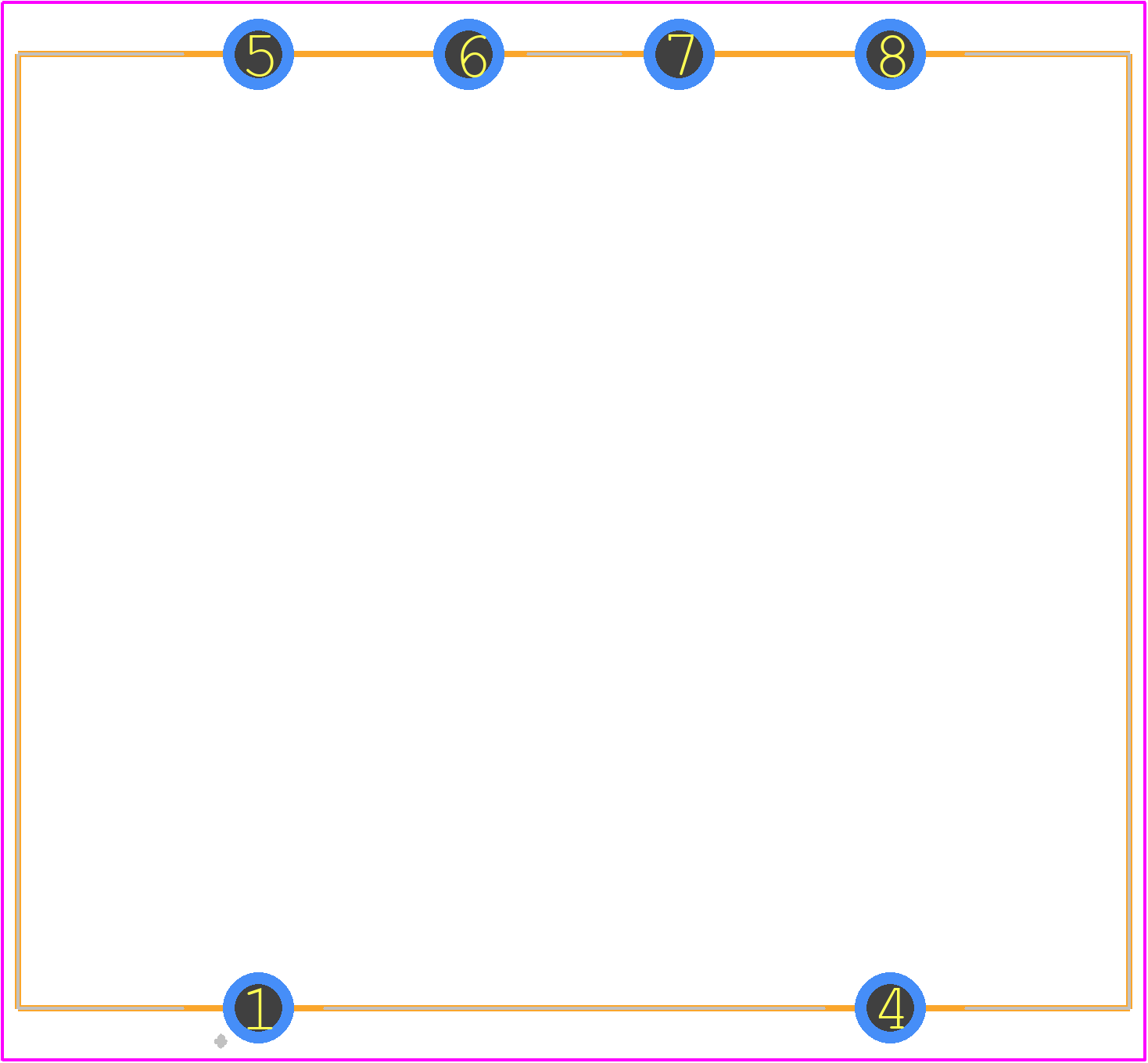

PCB Footprints

F16-150-C2 - Triad Magnetics PCB footprint - Other - Other - F16-150-C2-2

click to zoom

3D Models

F16-150-C2 - Triad Magnetics - 3D model - Other - F16-150-C2-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for F16-150-C2
Part Number F16-150-C2
Manufacturer Triad Magnetics
Pin Count 6
Part Category Transformer
Package Category Other
Footprint Name Other - F16-150-C2-2
Released Date Nov 9, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

F16-150-C2 Details

Manufacturer Part Number:
F16-150-C2
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8504.31.40.35
Manufacturer:
Triad Magnetics
YTEOL:
5.83
Approvals:
CUL; UL
Center Tap Feature 1:
NO
Center Tap Feature 2:
NO
Height:
30.16 mm
Input Voltage-Nom:
115 V
Isolation Voltage:
1500 V
Length:
34.93 mm
Mounting Feature:
THROUGH HOLE MOUNTED
Number of Secondary Winding:
2
Output Current 1:
0.3 A
Output Voltage 1:
8 V
Output Voltage 2:
8 V
Primary Rating:
SINGLE 115V
Surface Mount:
NO
Transformer Type:
SPLIT BOBBIN POWER TRANSFORMER
VA Rating:
2.5 VA
Width:
28.58 mm

F16-150-C2 Frequently Asked Questions (FAQs)

The recommended operating temperature range for the F16-150-C2 is -40°C to 125°C, with a maximum storage temperature of 150°C.
Yes, the F16-150-C2 is designed to withstand high-vibration environments and meets the requirements of MIL-STD-202, Method 204, Condition D.
The F16-150-C2 is rated for operation up to 80,000 feet (24,384 meters) above sea level.
Yes, the F16-150-C2 is designed to operate in humid or wet environments and meets the requirements of MIL-STD-202, Method 106, Condition B.
Yes, the F16-150-C2 is designed for high-reliability applications and has a typical lifespan of 10,000 to 20,000 hours, depending on operating conditions.

Trust Checks

Expert Contribution

System Verified

Community Approved

F16-150-C2 Overview

Use the download button to access the F16-150-C2 schematic symbol, PCB footprint, and 3D model.
