F1653NLGI - Renesas Electronics

Description: The IDT F1653 Broadband ZIF/CIF I/Q modulator is ideal for high order LTE MIMO systems. The F1653 I/Q Modulator implements Zero-DistortionTM technology for extremely low power consumption with ultra high linearity. It features 3 dB of power gain with very low added noise and interfaces directly with popular JESD204B and DDR DACs.

Download F1653NLGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

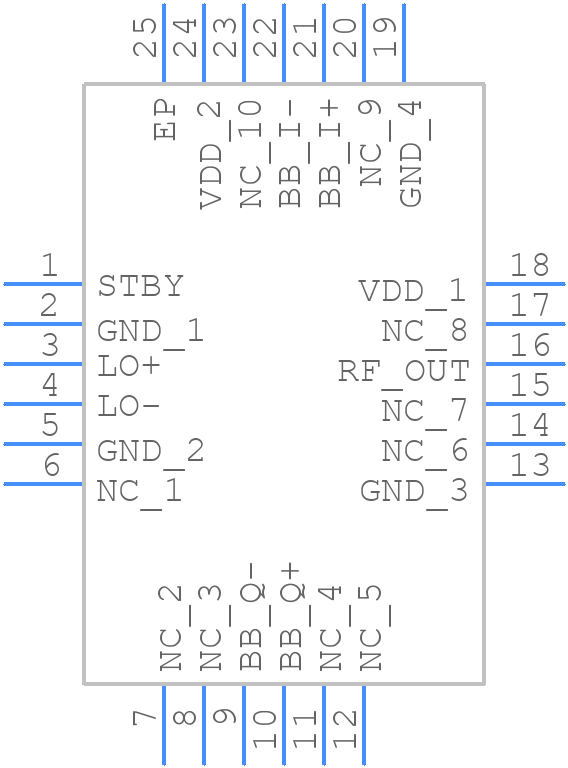

F1653NLGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
F1653NLGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG24P1-
click to zoom
3D Models
F1653NLGI - Renesas Electronics - 3D model - Quad Flat No-Lead - NLG24P1-
click to zoom

F1653NLGI Details

  • Manufacturer Part Number:

    F1653NLGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    VFQFPN

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24P1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • JESD-609 Code:

    e3

  • RF/Microwave Device Type:

    MODULATOR

  • Terminal Finish:

    Tin (Sn)

F1653NLGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions and trigger a shutdown or warning signal. The datasheet provides guidelines for selecting the current sense resistor value.
  • According to Renesas, the maximum allowed voltage on the VCC pin during power-up and power-down sequences is 6.5V. Exceeding this voltage may damage the device.
  • Renesas provides EMC guidelines in their application notes, including recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with relevant standards.
  • The recommended operating temperature range for the F1653NLGI is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F1653NLGI Overview

Use the download button to access the F1653NLGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F1653, or try a keyword search, such as RF/Microwave Modulator/Demodulators
