F1778510M2KCT0 - Vishay

Description: Safety Capacitors 1uF 310V 20%

Download F1778510M2KCT0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
F1778510M2KCT0 - Vishay - PCB symbol
click to zoom
PCB Footprints

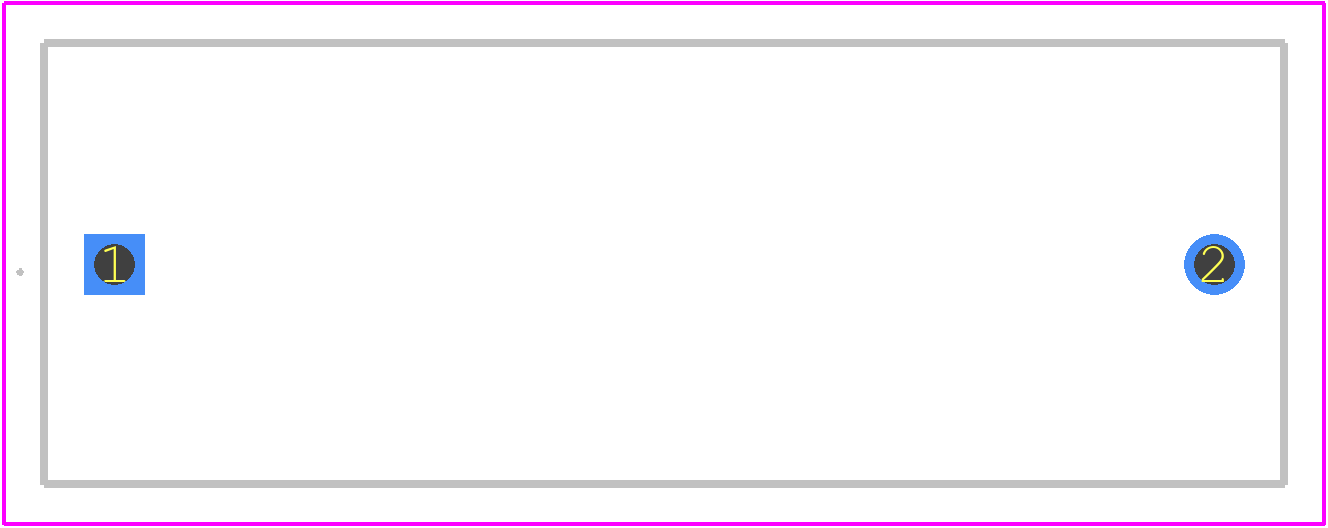

F1778510M2KCT0 - Vishay PCB footprint - Other - Other - F1778510M2KCT0-1
click to zoom
3D Models
F1778510M2KCT0 - Vishay - 3D model - Other - F1778510M2KCT0-1
click to zoom

F1778510M2KCT0 Details

  • Manufacturer Part Number:

    F1778510M2KCT0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.46

  • Capacitance:

    1 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    21 mm

  • JESD-609 Code:

    e3

  • Length:

    31 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    TRAY

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    310 V

  • Rated (DC) Voltage (URdc):

    630 V

  • Reference Standard:

    IEC60384-14;UL

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Pitch:

    27.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    11 mm
