F24-100-C2 - Triad Magnetics

Description: Power Transformers POWER XFMR 24 Vct @ 100 mA UL/cUL - Class 2/3, 115V SPLIT PACK PCB MOUNT / F24-100-C2

Download F24-100-C2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

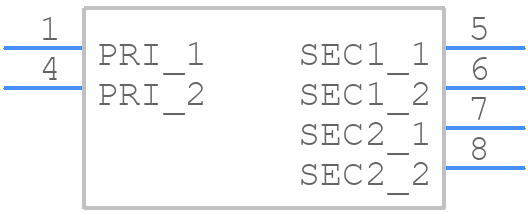

F24-100-C2 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

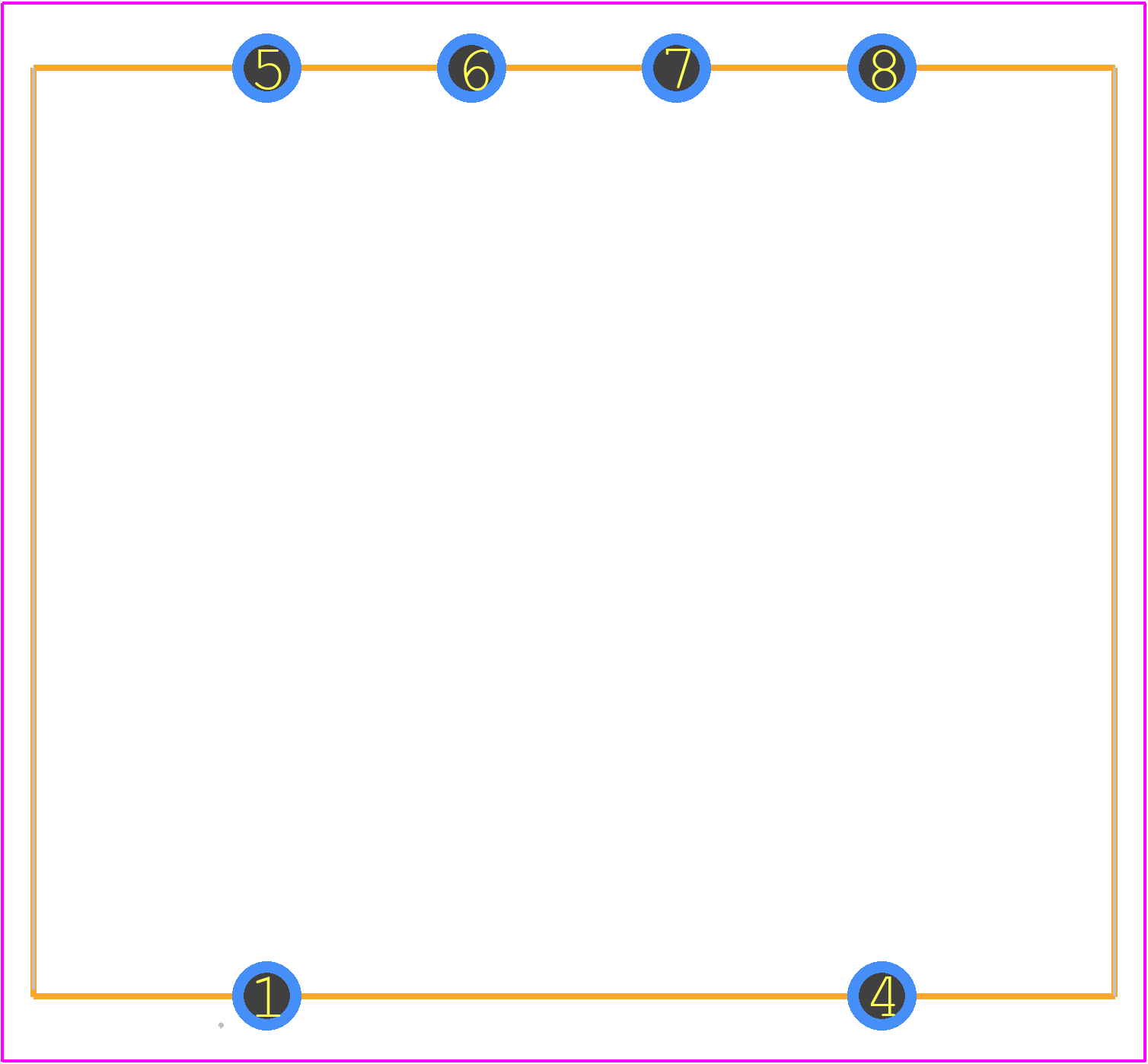

F24-100-C2 - Triad Magnetics PCB footprint - Other - Other - F24-100-C2-2
click to zoom
3D Models
F24-100-C2 - Triad Magnetics - 3D model - Other - F24-100-C2-2
click to zoom

F24-100-C2 Details

  • Manufacturer Part Number:

    F24-100-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    30.16 mm

  • Input Voltage-Nom:

    115 V

  • Isolation Voltage:

    1500 V

  • Length:

    34.93 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.2 A

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Primary Rating:

    SINGLE 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    2.5 VA

  • Width:

    28.58 mm

F24-100-C2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the F24-100-C2 is -40°C to 125°C, with a maximum storage temperature of 150°C.
  • Yes, the F24-100-C2 is suitable for use in switching power supply applications, including DC-DC converters and AC-DC converters, due to its low losses and high efficiency.
  • The maximum voltage rating for the F24-100-C2 is 250 VRMS, with a maximum surge voltage of 1.5 times the rated voltage for 1 second.
  • To ensure proper thermal management, it is recommended to provide adequate airflow around the transformer, use a heat sink if necessary, and follow proper PCB layout and design guidelines to minimize thermal resistance.
  • Yes, the F24-100-C2 meets the requirements of UL 5085 and IEC 61558 safety standards for transformers, and is certified by UL and IEC.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F24-100-C2 Overview

Use the download button to access the F24-100-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F24-1, or try a keyword search, such as Power/Mains Transformers
