F24-250-C2 - Triad Magnetics

Description: Power Transformers POWER XFMR 24 Vct @ 250 mA UL/cUL - Class 2/3, 115V SPLIT PACK PCB MOUNT / F24-250-C2

Download F24-250-C2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

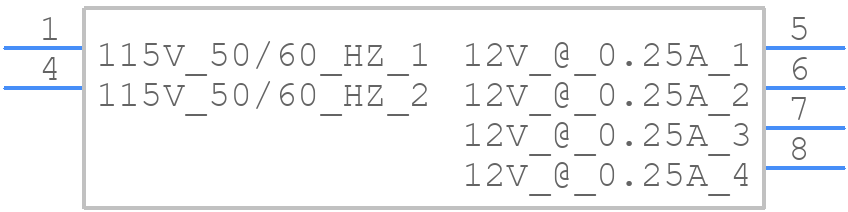

F24-250-C2 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

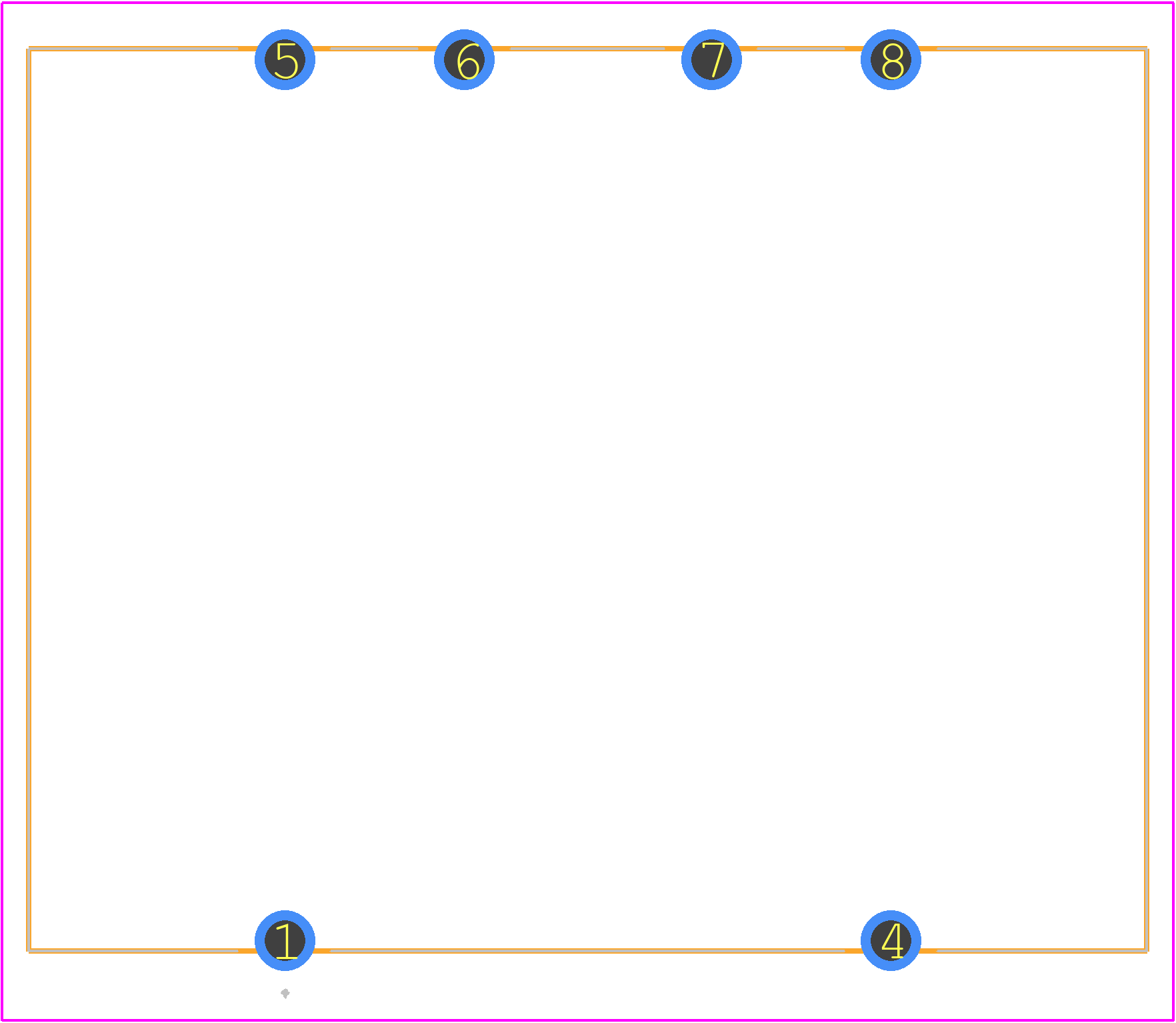

F24-250-C2 - Triad Magnetics PCB footprint - Other - Other - F24-250-C2-1
click to zoom
3D Models
F24-250-C2 - Triad Magnetics - 3D model - Other - F24-250-C2-1
click to zoom

F24-250-C2 Details

  • Manufacturer Part Number:

    F24-250-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    33.34 mm

  • Input Voltage-Nom:

    115 V

  • Isolation Voltage:

    1500 V

  • Length:

    41.28 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.5 A

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Primary Rating:

    SINGLE 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    6 VA

  • Width:

    33.34 mm

F24-250-C2 Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the F24-250-C2 is 50-400 Hz, but it can be used up to 1 kHz with reduced performance.
  • Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring that the transformer is not operated above its maximum temperature rating of 130°C.
  • The maximum allowable voltage imbalance for the F24-250-C2 is 10% to ensure reliable operation and prevent overheating.
  • Yes, the F24-250-C2 can be used in a parallel configuration, but it's essential to ensure that the transformers are identical and that the primary windings are connected in phase.
  • The recommended creepage distance for the F24-250-C2 is 4.5 mm to ensure safe and reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F24-250-C2 Overview

Use the download button to access the F24-250-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F24-2, or try a keyword search, such as Power/Mains Transformers
