F2480NBGI - Renesas Electronics

Description: The F2480 is a 400MHz to 3000MHz RF Analog Variable Gain Amplifier (AVGA) that can be used in receivers, transmitters and other applications. Either the amplifier or voltage variable attenuator (VVA) can be configured as the first stage in the cascade. The F2480 RF AVGA provides 12dB typical maximum cascade gain (no attenuation) with 4.3dB noise figure (amplifier as first stage) and 36dB gain adjustment designed to operate with a single +5V supply.  Nominally, the Zero-Distortion™ amplifier offers +41.5dBm

Download F2480NBGI Model

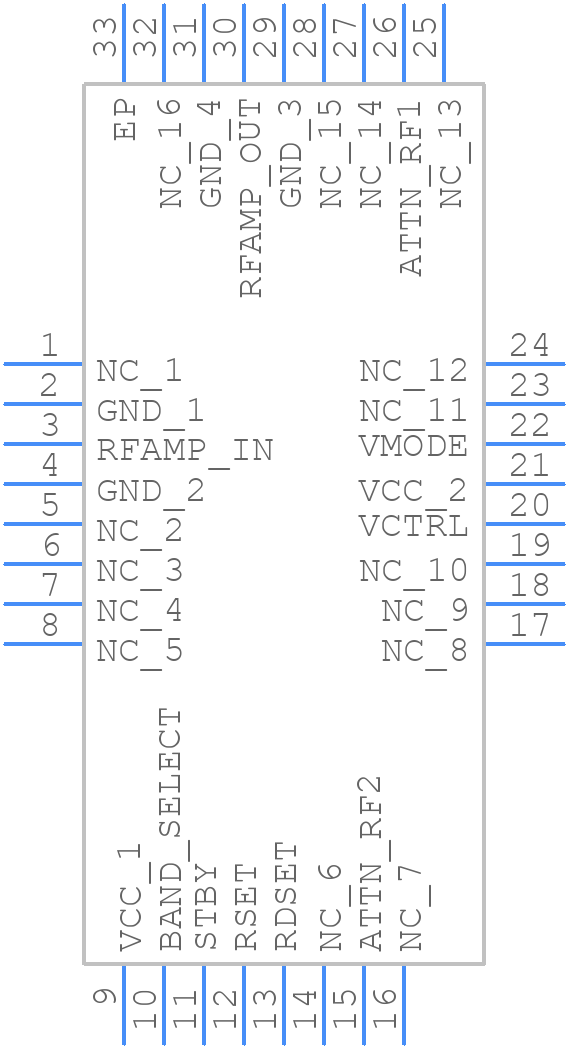

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
F2480NBGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NBG32P3
click to zoom
3D Models
F2480NBGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - NBG32P3
click to zoom

F2480NBGI Details

  • Manufacturer Part Number:

    F2480NBGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    VFQFPN

  • Pin Count:

    32

  • Manufacturer Package Code:

    NBG32P3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • RF/Microwave Device Type:

    VARIABLE GAIN AMPLIFIER

  • Terminal Finish:

    Tin (Sn)

F2480NBGI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the package for airflow and heat dissipation.
  • Implement a thermal management system, such as a heat sink or fan, to maintain a junction temperature below 125°C. Also, ensure proper PCB design and component selection to minimize thermal resistance.
  • Use a minimum of 2x 10uF ceramic capacitors (X5R or X7R) for decoupling, placed as close as possible to the power pins. Add a 1uF capacitor in parallel for high-frequency noise filtering. Ensure the power supply has a low impedance output and a stable voltage regulator.
  • Use the power-saving modes (e.g., idle, sleep, and shutdown) and adjust the clock frequency according to system requirements. Implement dynamic voltage and frequency scaling (DVFS) to minimize power consumption during periods of low system activity.
  • Implement a multi-layer PCB with a solid ground plane, use shielded cables, and ensure proper component placement and routing to minimize radiation. Add EMI filters and shielding to the system design as needed.
