F28-040 - Triad Magnetics

Description: Power Transformers POWER XFMR 28.0Vct@0.040A UL/cUL 115V SPLIT PACK PCB MOUNT/F28-040

Download F28-040 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

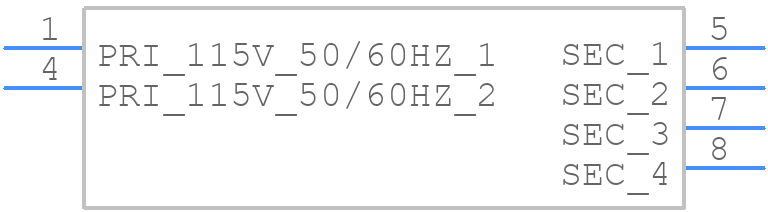

Symbol
F28-040 - Triad Magnetics - PCB symbol
click to zoom

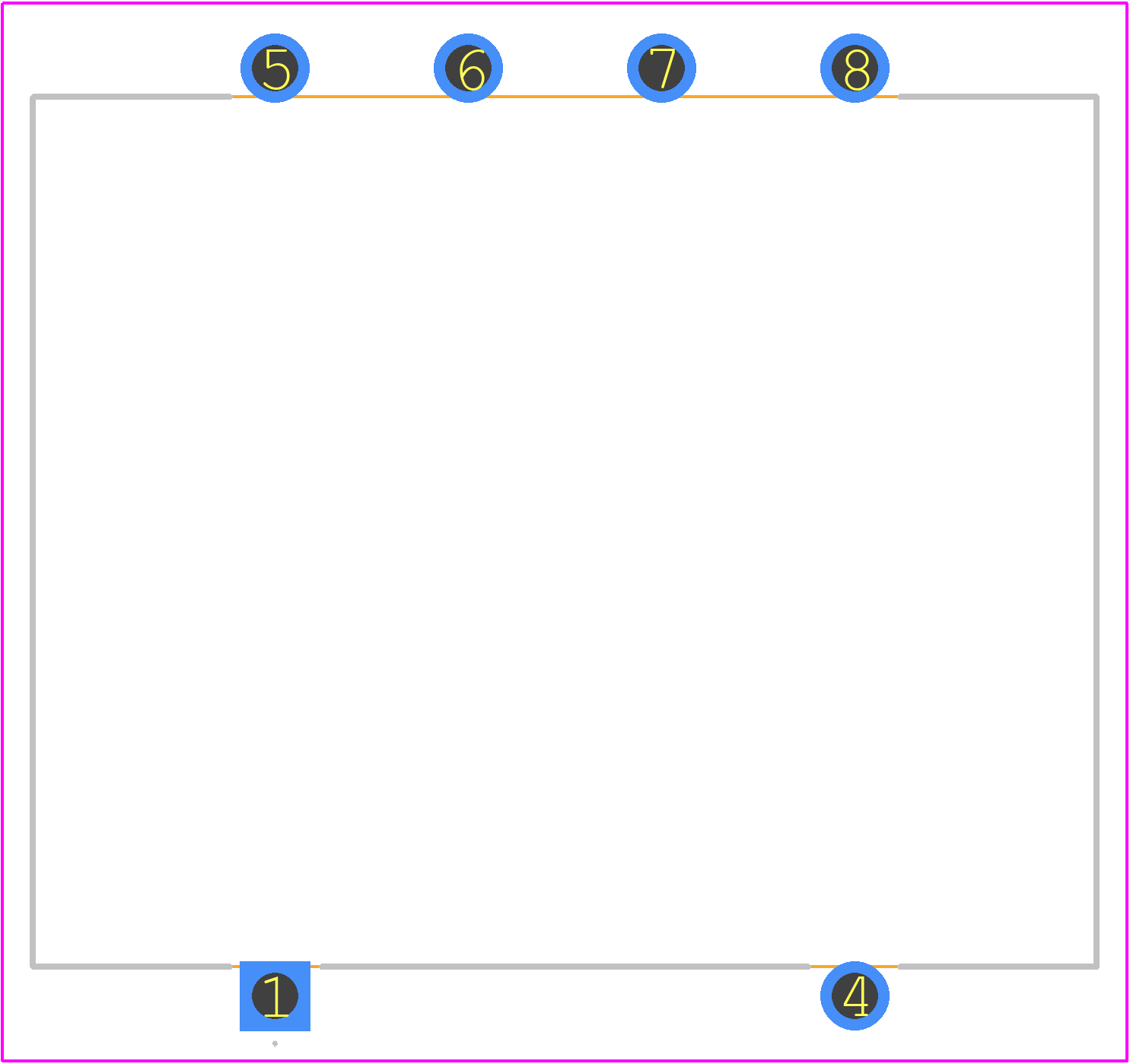

PCB Footprints
F28-040 - Triad Magnetics PCB footprint - Other - Other - 34.925mm x 28.575 x 23.7998
click to zoom
3D Models
F28-040 - Triad Magnetics - 3D model - Other - 34.925mm x 28.575 x 23.7998
click to zoom

F28-040 Details

  • Manufacturer Part Number:

    F28-040

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Application:

    POWER

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    23.81 mm

  • Input Voltage-Nom:

    115 V

  • Isolation Voltage:

    1500 V

  • Length:

    34.93 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.08 A

  • Output Voltage 1:

    14 V

  • Output Voltage 2:

    14 V

  • Primary Rating:

    SINGLE 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    1.1 VA

  • Width:

    28.58 mm

F28-040 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for F28-040 is -40°C to 125°C, with a maximum storage temperature of 150°C.
  • Yes, F28-040 is designed to withstand high-vibration environments. It meets the vibration test requirements of MIL-STD-202, Method 201A.
  • Yes, F28-040 is suitable for use in high-humidity environments. It meets the humidity test requirements of MIL-STD-202, Method 103B.
  • The maximum allowable DC resistance for F28-040 is 0.5 ohms maximum per winding.
  • Yes, F28-040 is designed to handle high surge currents. It has a high surge withstand capability of 1000 volts per microsecond.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F28-040 Overview

Use the download button to access the F28-040 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F28-0, or try a keyword search, such as Power/Mains Transformers
