F2933NBGP - Renesas Electronics

Description: The F2933 is a high-reliability, low-insertion loss, 50 Ω SP2T absorptive RF switch designed for a wide range of markets and applications.  This device covers a broad frequency range from 50 MHz to 8000 MHz, has an operating temperature range of -40 to 105°C and wide supply voltage range of 2.7 - 5.5 VDC. Designed for high-power handling, the F2933 has a P1 dB as high as 36.5 dBm, supporting a peak operating power of 34 dBm in the through path and a hot switching power of 27 dBm into the terminated RF port.

Download F2933NBGP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

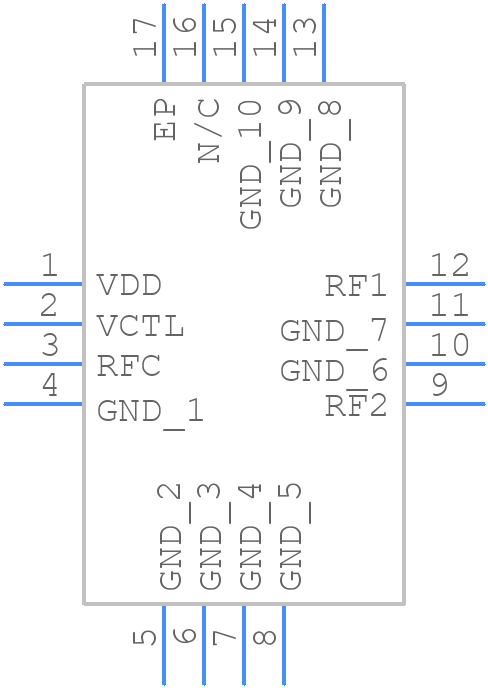

F2933NBGP - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
F2933NBGP - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - F2933
click to zoom
3D Models
F2933NBGP - Renesas Electronics - 3D model - Quad Flat No-Lead - F2933
click to zoom

F2933NBGP Details

  • Manufacturer Part Number:

    F2933NBGP

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    VFQFPN

  • Pin Count:

    16

  • Manufacturer Package Code:

    NBG16P2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • JESD-609 Code:

    e3

  • RF/Microwave Device Type:

    DIVERSITY SWITCH

  • Terminal Finish:

    Tin (Sn)

F2933NBGP Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The F2933NBGP has an internal overcurrent protection (OCP) feature, but it's not enabled by default. To implement OCP, you need to set the OCP threshold using the I2C interface and enable the OCP function by setting the appropriate register bits.
  • Although the datasheet specifies a maximum operating voltage of 5.5V, the VCC pin can tolerate up to 6.5V during power-up sequence, but it's essential to ensure that the voltage does not exceed 5.5V during normal operation.
  • First, verify that the I2C bus is properly configured and that the F2933NBGP is properly powered. Check the I2C clock frequency and ensure it's within the specified range. If the issue persists, try resetting the device using the reset pin or by power-cycling the device.
  • Renesas recommends using a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection IC to protect the F2933NBGP from electrostatic discharge. The recommended ESD protection devices are listed in the datasheet or in Renesas' application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F2933NBGP Overview

Use the download button to access the F2933NBGP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F2933, or try a keyword search, such as RF/Microwave Switches
