Description:The F2933 is a high-reliability, low-insertion loss, 50 Ω SP2T absorptive RF switch designed for a wide range of markets and applications. This device covers a broad frequency range from 50 MHz to 8000 MHz, has an operating temperature range of -40 to 105°C and wide supply voltage range of 2.7 - 5.5 VDC. Designed for high-power handling, the F2933 has a P1 dB as high as 36.5 dBm, supporting a peak operating power of 34 dBm in the through path and a hot switching power of 27 dBm into the terminated RF port.
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the package.
Implement a robust power-on reset circuit, ensure a stable clock source, and use a reliable voltage regulator. Also, consider using a thermistor or thermocouple to monitor temperature.
Use a shielded enclosure, ensure proper grounding, and implement EMI filters on I/O lines. Also, consider using a common-mode choke and a ferrite bead on the power lines.
Use the low-power modes (e.g., sleep, standby) whenever possible, optimize the clock frequency, and use a low-dropout regulator. Also, consider using a power gating technique.
Use a version control system, implement a modular code structure, and use a debug tool like a JTAG or a serial wire debug interface. Also, consider using a real-time operating system (RTOS).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
F2933NBGP8 Overview

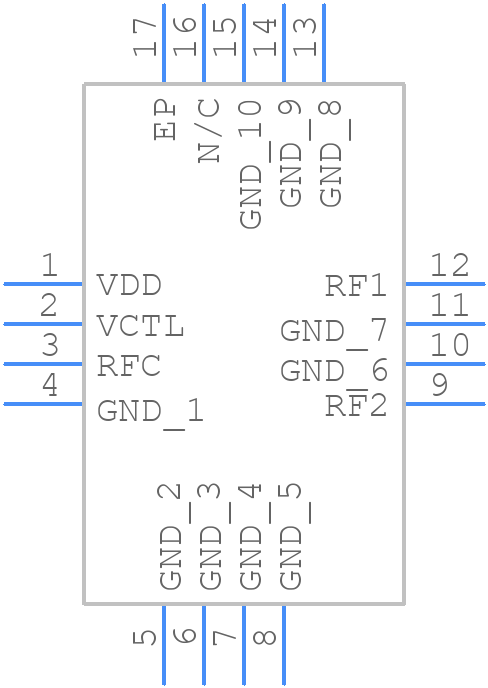

Use the download button to access the F2933NBGP8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F2933,
or try a keyword search, such as RF/Microwave Switches
