Description:The F2977 is a 50Ω single-pole double-throw (SP2T) reflective RF switch featuring high linearity and wide bandwidth. This device is optimized from 30MHz to 6GHz to support a multitude of wireless RF applications. The F2977 uses a single positive supply voltage of either +3.3V or +5.0V and is compatible with either 1.8V or 3.3V control logic.
Renesas provides a recommended PCB layout guide in their application note (AP61101) for the F2977NEGK, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The F2977NEGK has a built-in overcurrent protection feature, but it's not enabled by default. To implement overcurrent protection, you need to set the OCP (OverCurrent Protection) register bits in the device's configuration registers. Refer to the datasheet and application notes for specific register settings and implementation details.
According to Renesas, the maximum allowed voltage on the VCC pin during power-up and power-down sequences is 4.5V. Exceeding this voltage may cause damage to the device. Ensure that your power supply and voltage regulator design meet this requirement.
Renesas provides a range of debugging tools and software, including the Renesas Flash Development Toolkit (FDT) and the Renesas Debug Interface (RDI). These tools allow you to debug and troubleshoot issues with the F2977NEGK, including register access, memory inspection, and real-time tracing.
Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 10uF to 22uF, and a voltage rating of 6.3V or higher, placed as close as possible to the VCC pin. This helps to reduce noise and ensure stable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
F2977NEGK Overview

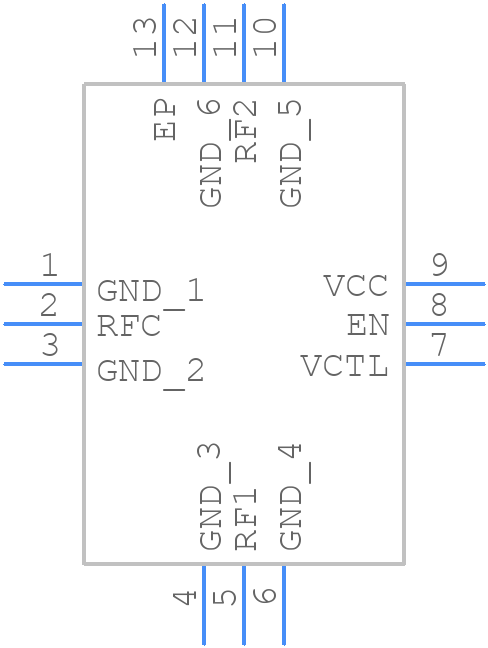

Use the download button to access the F2977NEGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F2977,
or try a keyword search, such as RF/Microwave Switches
