F30CT - XP POWER

Description: Isolated DC/DC Converters DUAL O/P DC-HV DC PCB MOUNT 10W, +/-1500V

Download F30CT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

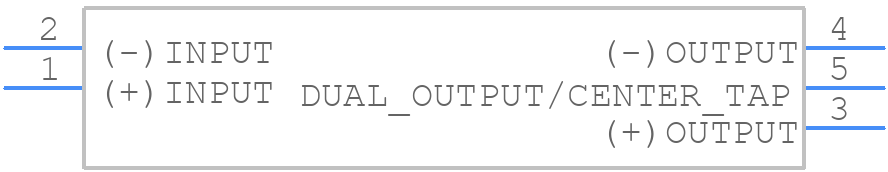

Symbol
F30CT - XP POWER - PCB symbol
click to zoom

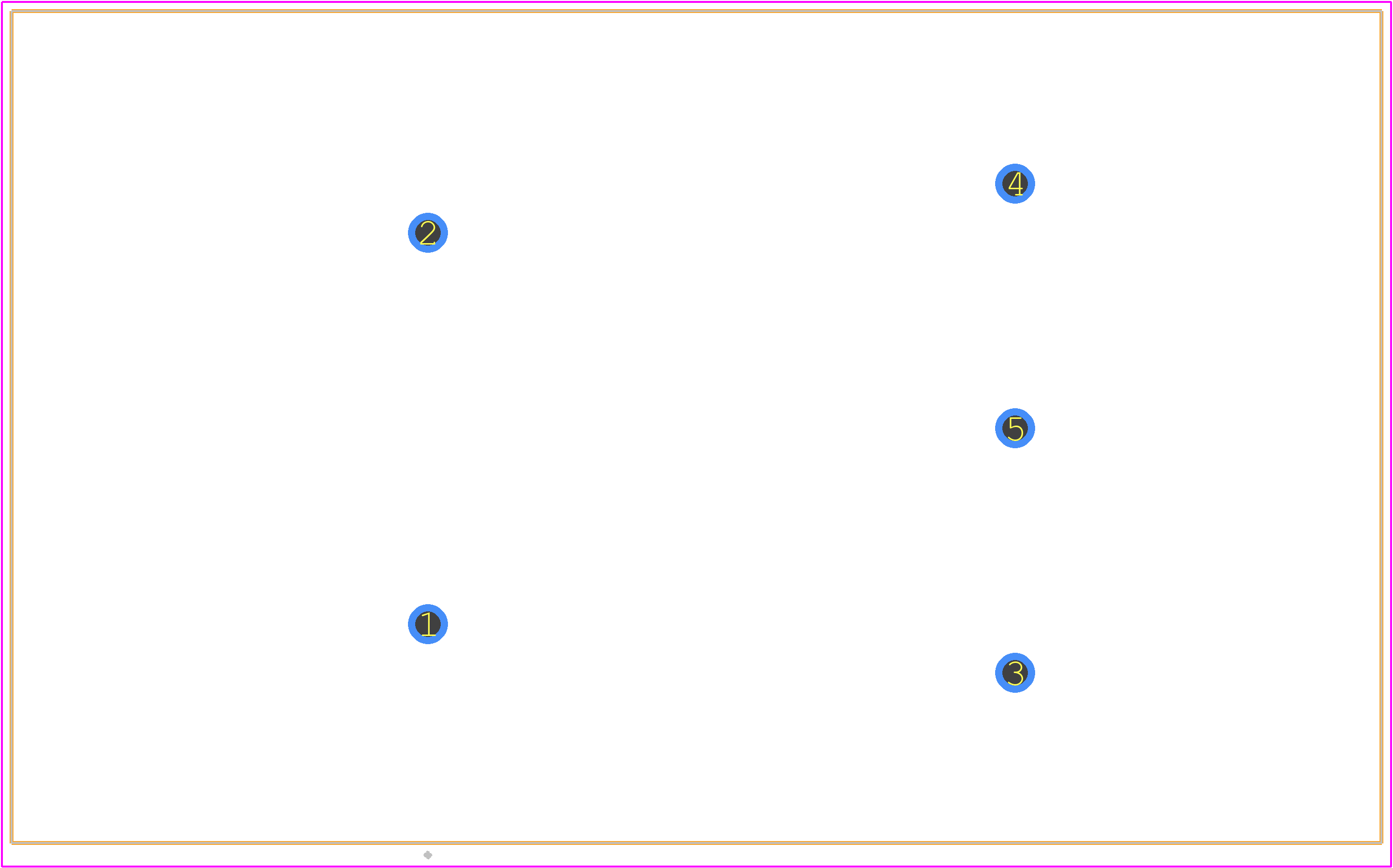

PCB Footprints
F30CT - XP POWER PCB footprint - Other - Other - F30CT-5
click to zoom
3D Models
F30CT - XP POWER - 3D model - Other - F30CT-5
click to zoom

F30CT Details

  • Manufacturer Part Number:

    F30CT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-5

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC UNREGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    15 V

  • JESD-30 Code:

    R-XDMA-P5

  • Length:

    71.1 mm

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Current-Max:

    0.0033 A

  • Output Voltage-Max:

    1500 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    SHORT CIRCUIT

  • Seated Height-Max:

    22.11 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    125 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    9.9 W

  • Trim/Adjustable Output:

    NO

  • Width:

    43.2 mm

F30CT Frequently Asked Questions (FAQs)

  • The F30CT can operate from -40°C to +85°C, but derating is required above 60°C.
  • The F30CT meets various safety certifications, including UL, cUL, and CE. Ensure you follow the recommended layout and component selection guidelines to maintain certification compliance.
  • The recommended input fuse rating is 2A slow-blow or 1A fast-acting, depending on the specific application and input voltage.
  • Yes, the F30CT is designed to withstand high-vibration environments. However, ensure proper mounting and secure the unit to prevent damage or dislodging.
  • Consult the XP Power troubleshooting guide or contact their technical support team for assistance. Common issues often relate to incorrect input voltage, inadequate cooling, or component failure.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F30CT Overview

Use the download button to access the F30CT schematic symbol, PCB footprint, and 3D model.
