F50360 footprint, schematic symbol and 3D model by SEOUL SEMICONDUCTOR

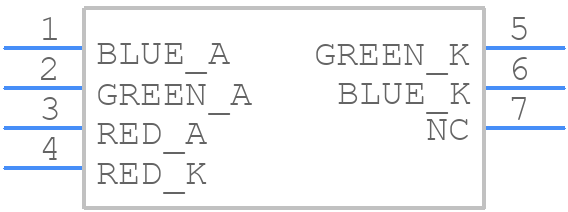

Symbol

PCB Footprints

3D Models

F50360 Details

The recommended storage temperature for F50360 is -20°C to 30°C, with a relative humidity of 60% or less.
Yes, F50360 is suitable for outdoor applications, but it's recommended to use a suitable encapsulant or coating to protect the LED from moisture and UV radiation.
The maximum forward current for F50360 is 30mA, but it's recommended to operate at a lower current (e.g., 20mA) for longer lifespan and reliability.
When soldering F50360, use a soldering iron with a temperature of 260°C or less, and avoid applying excessive force or bending the LED leads.
Yes, F50360 is compatible with lead-free soldering, but it's recommended to follow the manufacturer's guidelines for lead-free soldering profiles.

Expert Contribution

System Verified

Community Approved

Use the download button to access the F50360 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like F5036, or try a keyword search, such as Visible LEDs
