F750J108MRC - Kyocera AVX

Description: Tantalum Capacitors - Solid SMD 6.3V 1000uF 20% 2824 ESR= 120 mOhms

Download F750J108MRC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
F750J108MRC - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

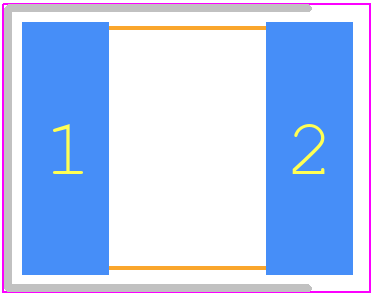

F750J108MRC - Kyocera AVX PCB footprint - Capacitor Chip Polarised - Capacitor Chip Polarised - Code r 2824
click to zoom
3D Models
F750J108MRC - Kyocera AVX - 3D model - Capacitor Chip Polarised - Code r 2824
click to zoom

F750J108MRC Details

  • Manufacturer Part Number:

    F750J108MRC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.98

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    1000 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    120 mΩ

  • Height:

    3.5 mm

  • Leakage Current:

    0.063 mA

  • Length:

    7.2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    6.3 V

  • Ripple Current:

    577 mA

  • Size Code:

    2824

  • Surface Mount:

    YES

  • Tan Delta:

    0.24

  • Terminal Shape:

    WRAPAROUND

  • Width:

    6 mm

F750J108MRC Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
  • Yes, the F750J108MRC is designed to withstand high-vibration environments. It has a vibration withstand of 10-2000 Hz, 1.5 mm amplitude, and 3 hours per axis. However, it's essential to ensure proper mounting and soldering to prevent mechanical stress.
  • The ESR of the F750J108MRC is not explicitly stated in the datasheet, but it can be estimated to be around 0.02 ohms based on the capacitor's construction and materials. This value may vary depending on the frequency and operating conditions.
  • Yes, the F750J108MRC is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly and sustainable designs.
  • The recommended storage condition for the F750J108MRC is in a dry, cool place with a temperature range of 10°C to 30°C (50°F to 86°F) and relative humidity below 70%. Avoid storing the capacitors in direct sunlight or near heat sources.
