F911V226MNC - Kyocera AVX

Description: AVX 22μF 35 V Tantalum Capacitor Electrolytic Solid ±20% Tolerance F91 Series

Download F911V226MNC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
F911V226MNC - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

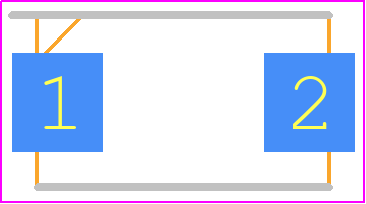

F911V226MNC - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - CASE N
click to zoom
3D Models
F911V226MNC - Kyocera AVX - 3D model - Capacitor Moulded Polarised - CASE N
click to zoom

F911V226MNC Details

  • Manufacturer Part Number:

    F911V226MNC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.75

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    22 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    300 mΩ

  • Height:

    2.8 mm

  • Leakage Current:

    0.0077 mA

  • Length:

    7.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 7 Inch

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    283 mA

  • Size Code:

    2917

  • Surface Mount:

    YES

  • Tan Delta:

    0.08

  • Terminal Shape:

    J BEND

  • Width:

    4.3 mm

F911V226MNC Frequently Asked Questions (FAQs)

  • The recommended land pattern for F911V226MNC is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
  • F911V226MNC is a moisture-sensitive device. It is recommended to store it in a dry environment (less than 30% RH) and to follow the recommended baking procedure before reflow soldering.
  • The maximum reflow temperature for F911V226MNC is 260°C, with a peak temperature not exceeding 240°C for more than 20 seconds.
  • Yes, F911V226MNC is designed to withstand high-vibration environments. However, it is recommended to follow the recommended mounting and soldering procedures to ensure reliable operation.
  • To troubleshoot issues with F911V226MNC, check for proper soldering, ensure that the device is properly seated on the PCB, and verify that the operating conditions are within the recommended specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F911V226MNC Overview

Use the download button to access the F911V226MNC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F911V, or try a keyword search, such as Tantalum Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
