F931V226MNC - Kyocera AVX

Description: AVX Tantalum Capacitor 22µF 35V dc Electrolytic Solid F93 Series

Download F931V226MNC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
F931V226MNC - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

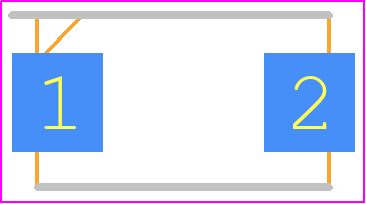

F931V226MNC - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - F931V226MNC
click to zoom
3D Models
F931V226MNC - Kyocera AVX - 3D model - Capacitor Moulded Polarised - F931V226MNC
click to zoom

F931V226MNC Details

  • Manufacturer Part Number:

    F931V226MNC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.75

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    22 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    700 mΩ

  • Height:

    2.9 mm

  • Leakage Current:

    0.0077 mA

  • Length:

    7.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    185 mA

  • Size Code:

    2917

  • Surface Mount:

    YES

  • Tan Delta:

    0.08

  • Terminal Shape:

    J BEND

  • Width:

    4.3 mm

F931V226MNC Frequently Asked Questions (FAQs)

  • The recommended land pattern for F931V226MNC can be found in the Kyocera AVX Components' recommended land pattern document, which provides detailed information on the pad layout and dimensions for optimal performance.
  • The F931V226MNC is designed to provide excellent high-frequency noise suppression, with a resonant frequency of 226MHz. It is suitable for use in high-frequency circuits and can help to reduce electromagnetic interference (EMI).
  • Yes, the F931V226MNC is compatible with lead-free soldering processes and is RoHS compliant, making it suitable for use in a wide range of applications.
  • The maximum operating temperature for the F931V226MNC is 125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
  • Yes, the F931V226MNC is designed and manufactured to meet the requirements of high-reliability applications, including aerospace, defense, and medical devices.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F931V226MNC Overview

Use the download button to access the F931V226MNC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F931V, or try a keyword search, such as Tantalum Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
