F971C226MCCHT3 - Kyocera AVX

Description: Tantalum Capacitors - Solid SMD 16V 22uF 20% 2312 ESR=1.1Ohm AEC-Q200

Download F971C226MCCHT3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
F971C226MCCHT3 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

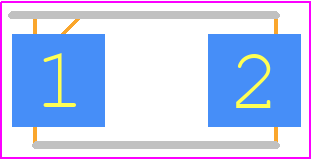

F971C226MCCHT3 - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - 2312
click to zoom
3D Models
F971C226MCCHT3 - Kyocera AVX - 3D model - Capacitor Moulded Polarised - 2312
click to zoom

F971C226MCCHT3 Details

  • Manufacturer Part Number:

    F971C226MCCHT3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    22 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    1100 mΩ

  • Height:

    2.6 mm

  • Leakage Current:

    0.0035 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    135 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    126 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.08

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

F971C226MCCHT3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for F971C226MCCHT3 can be found in the Kyocera AVX Components' recommended land pattern document, which provides detailed information on the pad layout, size, and spacing for optimal performance and reliability.
  • The F971C226MCCHT3 is designed to provide excellent high-frequency noise suppression and EMI filtering capabilities due to its ceramic construction and internal electrode design. However, additional shielding or filtering components may be required depending on the specific application and environmental conditions.
  • Yes, the F971C226MCCHT3 is compatible with lead-free soldering processes and meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The maximum operating temperature range for the F971C226MCCHT3 is -55°C to +125°C, as specified in the datasheet. However, it's essential to consider the derating factors and thermal management strategies to ensure reliable operation in extreme temperature environments.
  • The F971C226MCCHT3 is designed to withstand moderate levels of vibration and shock. However, for high-vibration or high-shock applications, additional mechanical support or specialized mounting techniques may be required to ensure the component's reliability and performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F971C226MCCHT3 Overview

Use the download button to access the F971C226MCCHT3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F971C, or try a keyword search, such as Tantalum Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
