FA-T220-25E footprint, schematic symbol and 3D model by Ohmite

Symbol

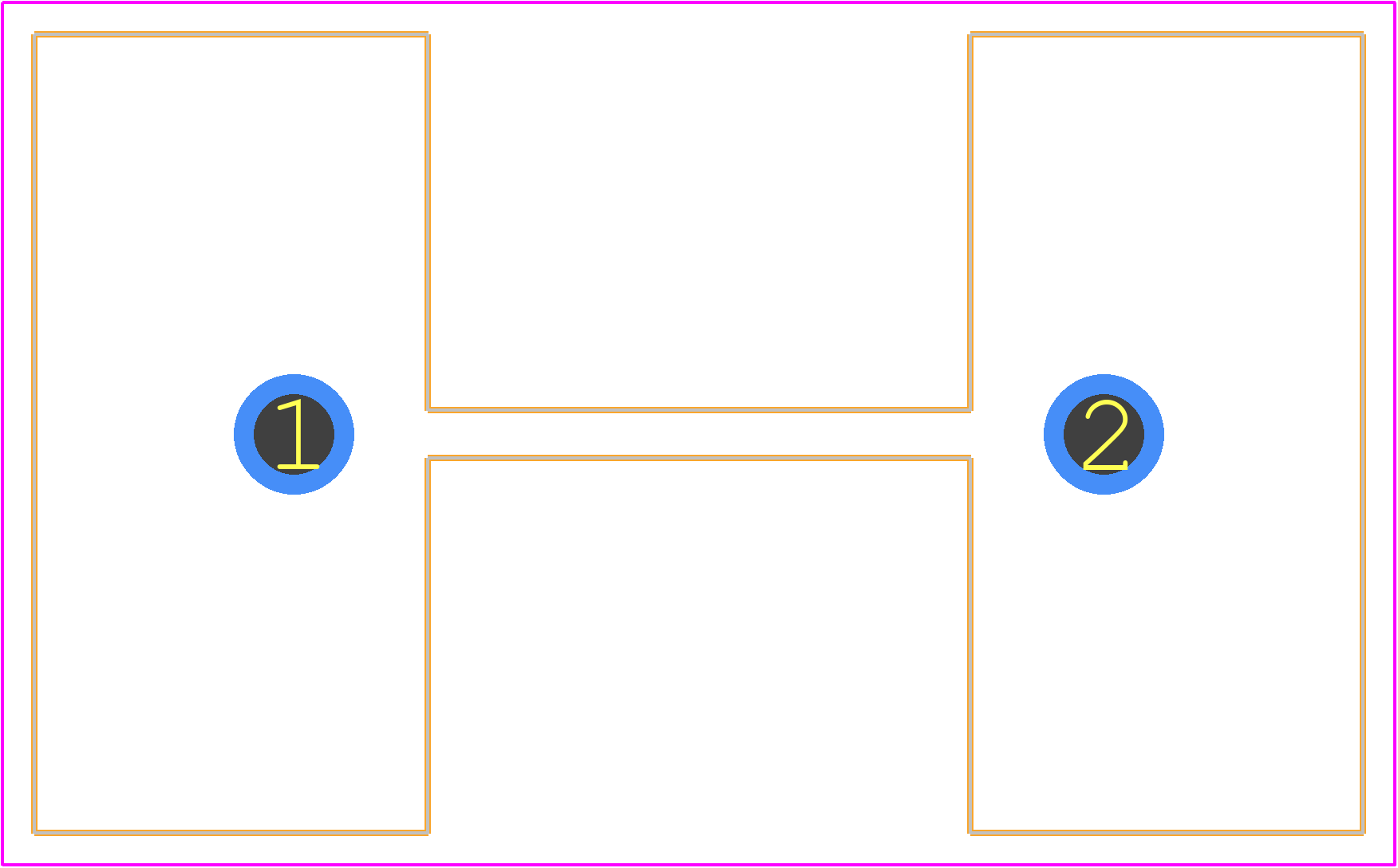

PCB Footprints

3D Models

FA-T220-25E Details

The thermal resistance of the FA-T220-25E is approximately 1.5°C/W, which is relatively low, making it suitable for high-power applications.
Yes, the FA-T220-25E is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of hazardous substances in electrical and electronic equipment.
The maximum operating temperature of the FA-T220-25E is 150°C, making it suitable for high-temperature applications.
Yes, the FA-T220-25E is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
Yes, the FA-T220-25E is designed for high-reliability applications, with a failure rate of less than 1% per 1,000 hours of operation, making it suitable for critical systems.

Expert Contribution

System Verified

Community Approved

Use the download button to access the FA-T220-25E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FA-T2, or try a keyword search, such as Heat Sinks
