FA-T220-38E footprint, schematic symbol and 3D model by Ohmite

Symbol

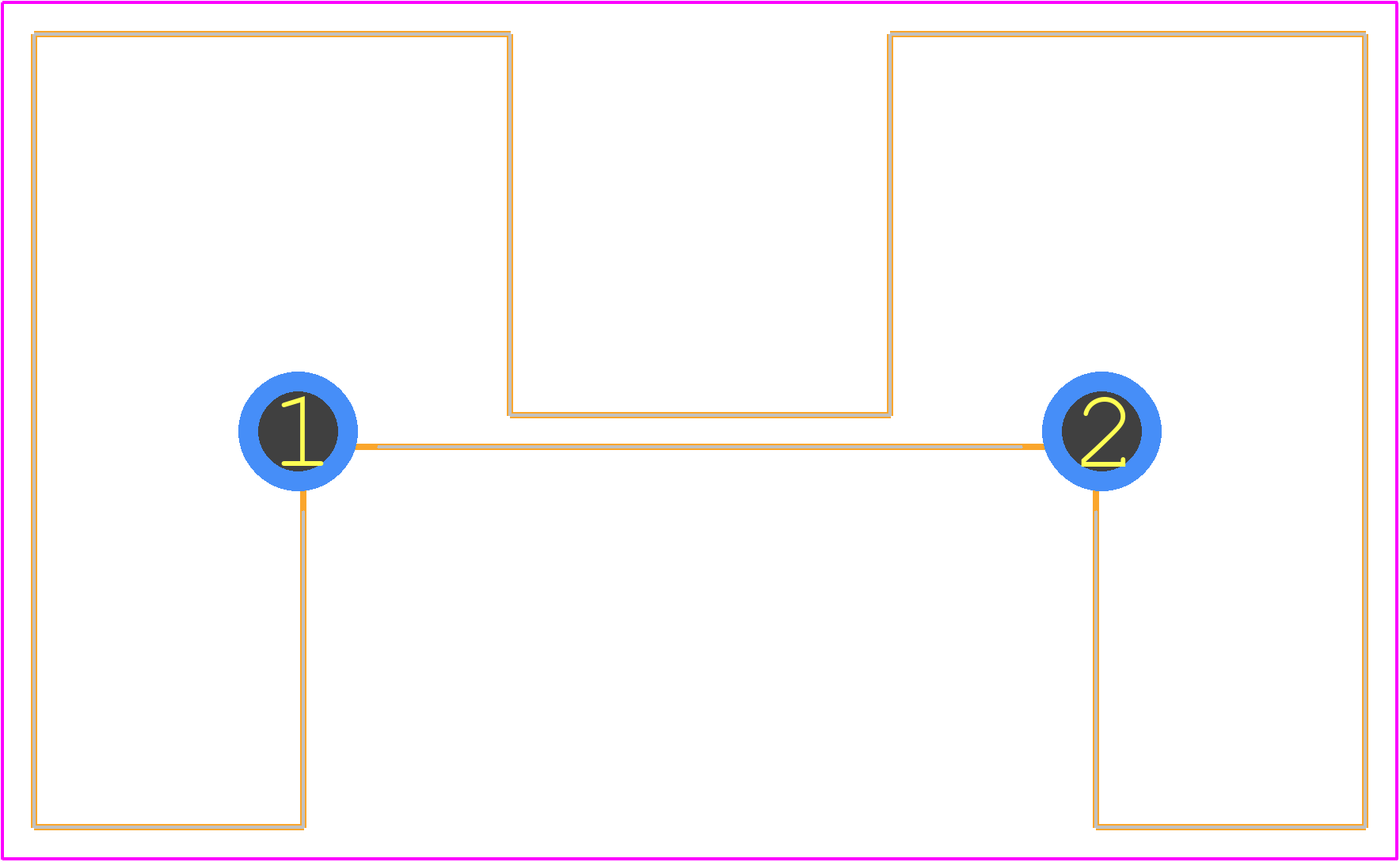

PCB Footprints

3D Models

FA-T220-38E Details

The thermal resistance of the FA-T220-38E is typically around 1.5°C/W, but this can vary depending on the specific application and mounting method.
Yes, the FA-T220-38E is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and installation procedures to ensure reliable performance.
Yes, the FA-T220-38E is RoHS and REACH compliant, making it suitable for use in a wide range of applications, including those that require environmental compliance.
The recommended torque for mounting the FA-T220-38E is typically around 10-15 in-lbs (1.1-1.7 Nm). However, it's recommended to consult the datasheet or manufacturer's instructions for specific mounting requirements.
The FA-T220-38E is designed to operate in temperatures up to 150°C. However, it's recommended to derate the power dissipation accordingly to ensure reliable performance and prevent overheating.
