FA1-NZRP-PCB-8 footprint, schematic symbol and 3D model by Amphenol

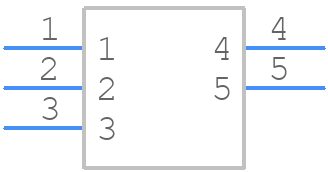

Symbol

click to zoom

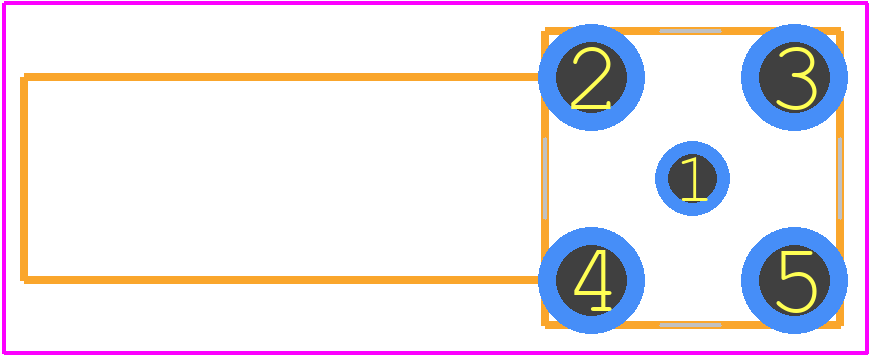

PCB Footprints

FA1-NZRP-PCB-8 - Amphenol PCB footprint - Other - Other - FA1-NZRP-PCB-8-2

click to zoom

3D Models

FA1-NZRP-PCB-8 - Amphenol - 3D model - Other - FA1-NZRP-PCB-8-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FA1-NZRP-PCB-8
Part Number FA1-NZRP-PCB-8
Manufacturer Amphenol
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - FA1-NZRP-PCB-8-2
Released Date Mar 22, 2020
Last Modified Date Sep 11, 2023 3:07 PM UTC
Pinout / Pin List Click Here (Member Only)

FA1-NZRP-PCB-8 Details

Manufacturer Part Number:
FA1-NZRP-PCB-8
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Factory Lead Time:
10 Weeks
Manufacturer:
Amphenol Corporation
YTEOL:
7
Additional Feature:
POLARIZED; VSWR MAX AT: 3 GHZ
Body Breadth:
0.32 inch
Body Depth:
0.803 inch
Body/Shell Style:
PLUG
Characteristic Impedance:
50 Ω
Connector Type:
RF SMB CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Style:
COAX
Coupling Type:
SNAP
DIN Conformance:
NO
Dielectric Withstanding Voltage:
1131VAC V
Durability:
100 Cycles
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYTETRAFLUOROETHYLENE
MIL Conformance:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Operating Frequency-Max:
6 GHz
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-65 °C
Option:
GENERAL PURPOSE
Packing Method:
TRAY
Panel Mount:
NO
Shell Finish:
TIN
Shell Material:
ZINC ALLOY
Terminal Length:
0.126 inch
Termination Type:
SOLDER
Total Number of Contacts:
1
VSWR:
1.5

FA1-NZRP-PCB-8 Frequently Asked Questions (FAQs)

Amphenol recommends a specific PCB layout and footprint for the FA1-NZRP-PCB-8 connector, which can be found in the application notes or by contacting Amphenol's technical support team.
To ensure reliable mating and unmating, follow Amphenol's recommended mating and unmating procedures, and ensure that the connector is properly aligned and seated during assembly.
The FA1-NZRP-PCB-8 connector is rated for operation from -40°C to 125°C, but it's recommended to consult the datasheet or contact Amphenol for specific temperature ratings for your application.
The FA1-NZRP-PCB-8 connector is designed to withstand moderate vibration and shock, but for extreme environments, consult Amphenol's application notes or contact their technical support team for guidance on specific requirements.
Follow Amphenol's recommended cleaning and maintenance procedures, which typically involve using a soft brush and a mild cleaning solution to remove debris and contaminants.

Trust Checks

Expert Contribution

System Verified

Community Approved

FA1-NZRP-PCB-8 Overview

Use the download button to access the FA1-NZRP-PCB-8 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FA1-N, or try a keyword search, such as RF SMB/SSMB Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
