FA14X7R1H154KNU06 - TDK

Description: MLCC with Dipped Radial Lead, Capacitance=0.15?F, LxWxT:4.5x5.5x3mm, Lead pitch:2.5mm

Download FA14X7R1H154KNU06 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FA14X7R1H154KNU06 - TDK - PCB symbol
click to zoom
PCB Footprints

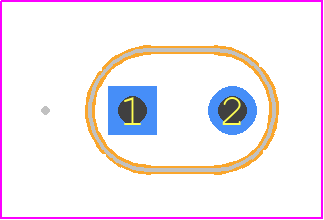

FA14X7R1H154KNU06 - TDK PCB footprint - Other - Other - FA14
click to zoom
3D Models
FA14X7R1H154KNU06 - TDK - 3D model - Other - FA14
click to zoom

FA14X7R1H154KNU06 Details

  • Manufacturer Part Number:

    FA14X7R1H154KNU06

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6.38

  • Capacitance:

    0.15 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    5.5 mm

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    AMMO PACK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    50 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    TIN OVER NICKEL

  • Terminal Pitch:

    2.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    3 mm

FA14X7R1H154KNU06 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the FA14X7R1H154KNU06 capacitor can be found in the TDK Corporation's Capacitor Land Pattern document, which provides guidelines for PCB layout and footprint design.
  • The Equivalent Series Resistance (ESR) of the FA14X7R1H154KNU06 capacitor is an important parameter in high-frequency circuits. A lower ESR value can help reduce energy losses and improve the capacitor's overall performance. TDK Corporation provides ESR values in the datasheet, and engineers can use this information to optimize their circuit designs.
  • The FA14X7R1H154KNU06 capacitor has a maximum operating temperature of 125°C, making it suitable for use in high-temperature environments. However, engineers should consider the capacitor's derating characteristics and ensure that the component is properly cooled to prevent overheating.
  • The FA14X7R1H154KNU06 capacitor has an MSL rating of 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before reflow soldering. Engineers should follow proper handling and storage procedures to prevent moisture absorption.
  • The FA14X7R1H154KNU06 capacitor meets the requirements for safety-critical applications, such as automotive and industrial systems. However, engineers should ensure that the component is properly qualified and validated for their specific application, and that it meets all relevant safety standards and regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FA14X7R1H154KNU06 Overview

Use the download button to access the FA14X7R1H154KNU06 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FA14X, or try a keyword search, such as Ceramic Capacitors
