The recommended land pattern for the FA20X7R2A155KRU06 can be found in the TDK Corporation's Capacitor Land Pattern document, which is available on their website. The document provides detailed information on the recommended pad size, shape, and spacing for optimal soldering and reliability.
The FA20X7R2A155KRU06 is a Class 2 ceramic capacitor, which means it is suitable for high-frequency applications. However, its performance may degrade at frequencies above 100 MHz. For high-frequency applications, it's recommended to consult the impedance vs. frequency graph in the datasheet and consider using a capacitor with a higher self-resonant frequency.
The FA20X7R2A155KRU06 meets the requirements of the AEC-Q200 standard, which makes it suitable for use in automotive applications. However, it's essential to ensure that the capacitor meets the specific requirements of the vehicle manufacturer and the application.
The FA20X7R2A155KRU06 has a maximum operating temperature range of -55°C to +125°C. However, the capacitor's performance and reliability may degrade at temperatures above 85°C. It's recommended to derate the capacitor's voltage and current ratings at high temperatures.
The FA20X7R2A155KRU06 has a moisture sensitivity level (MSL) of 2, which means it can withstand normal humidity levels. However, it's not recommended to use the capacitor in extremely humid or moist environments, as this can affect its performance and reliability. If the capacitor will be exposed to high humidity, consider using a capacitor with a higher MSL rating or taking additional precautions to protect the component.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FA20X7R2A155KRU06 Overview

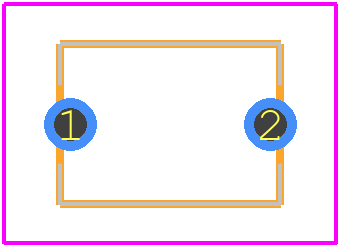

Use the download button to access the FA20X7R2A155KRU06 schematic symbol, PCB footprint, and 3D model.
