FA2443-AL - COILCRAFT

Description: Audio Transformers / Signal Transformers FA2443 120uH 19.4V For TI Green Mode

Download FA2443-AL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

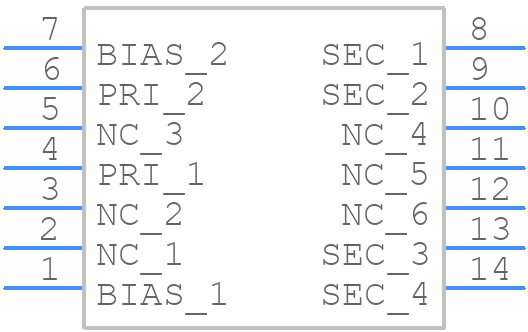

FA2443-AL - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

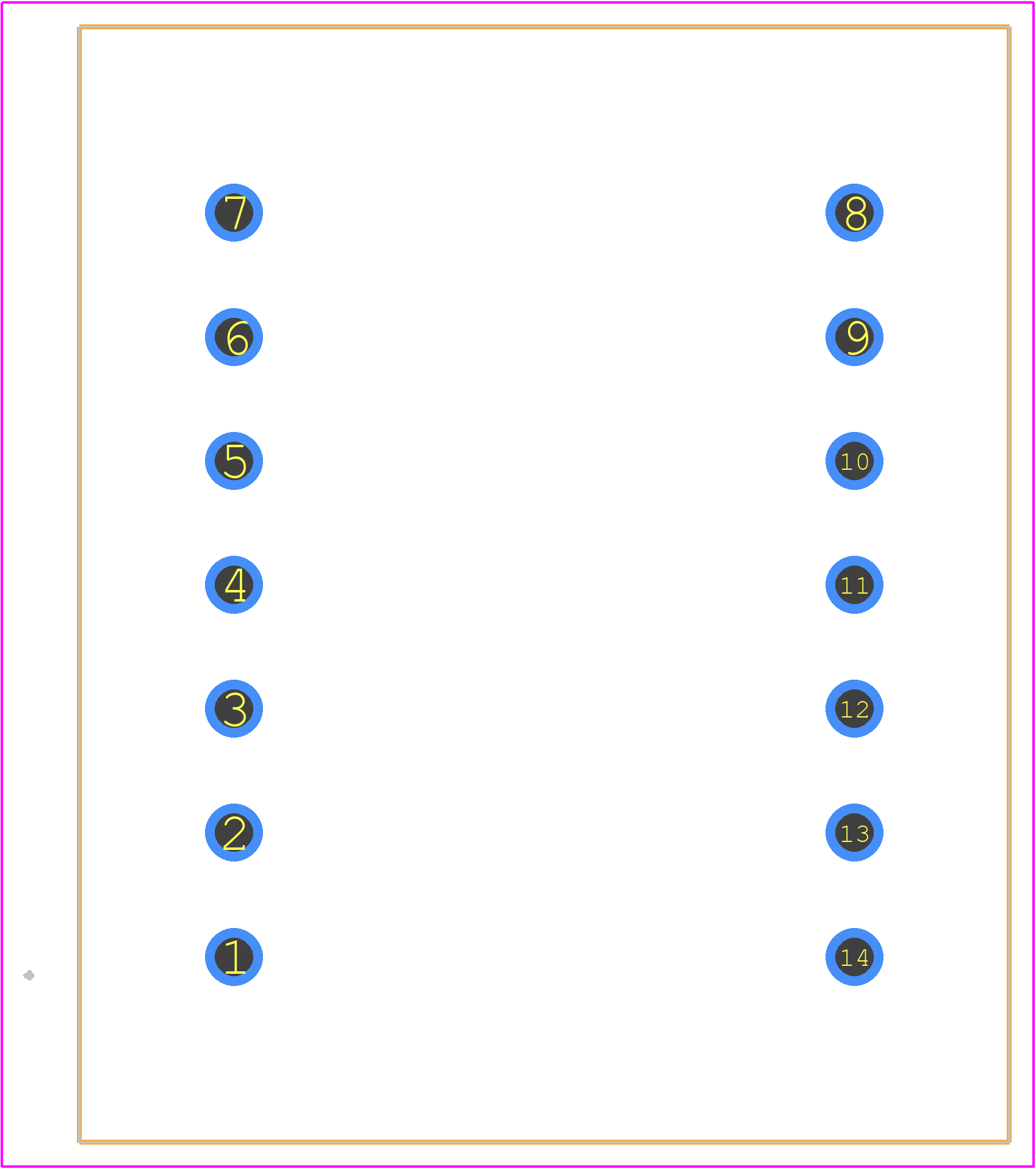

FA2443-AL - COILCRAFT PCB footprint - Other - Other - FA2443-AL-2
click to zoom
3D Models
FA2443-AL - COILCRAFT - 3D model - Other - FA2443-AL-2
click to zoom

FA2443-AL Details

  • Manufacturer Part Number:

    FA2443-AL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.46

  • Height:

    29.21 mm

  • Input Voltage-Max:

    265 V

  • Input Voltage-Min:

    85 V

  • JESD-609 Code:

    e2

  • Length:

    45.72 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    19.4 V

  • Output Voltage 2:

    19.4 V

  • Packing Method:

    TRAY

  • Power Rating:

    120 W

  • Primary Inductance:

    200 µH

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    38.1 mm

FA2443-AL Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended PCB land pattern in their application note AN-40, which can be found on their website. The land pattern is designed to ensure optimal performance and reliability of the inductor.
  • Coilcraft recommends following the standard reflow soldering profile for the FA2443-AL inductor. The inductor can withstand the standard reflow soldering process, but it's essential to ensure that the component is properly aligned and secured to the PCB to prevent movement during the reflow process.
  • While the datasheet specifies an operating temperature range of -40°C to +125°C, Coilcraft recommends derating the inductor's current rating for extended operation above 85°C. Consult Coilcraft's application notes or contact their technical support for more information on temperature derating.
  • The FA2443-AL inductor is designed to withstand moderate vibration levels. However, for high-vibration applications, Coilcraft recommends using their vibration-rated inductors, such as the VLS series, which are specifically designed for high-reliability applications.
  • Coilcraft provides EMI shielding options for their inductors, including the FA2443-AL. Consult Coilcraft's application notes or contact their technical support to discuss custom EMI shielding solutions for your specific application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FA2443-AL Overview

Use the download button to access the FA2443-AL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FA244, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
