FA2636-ALD footprint, schematic symbol and 3D model by COILCRAFT

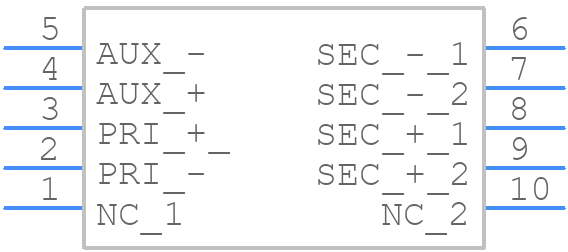

Symbol

click to zoom

PCB Footprints

FA2636-ALD - COILCRAFT PCB footprint - Other - Other - FA2636-ALD

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FA2636-ALD
Part Number FA2636-ALD
Manufacturer COILCRAFT
Pin Count 10
Part Category Transformer
Package Category Other
Footprint Name Other - FA2636-ALD
Released Date Aug 20, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FA2636-ALD Details

Manufacturer Part Number:
FA2636-ALD
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.13
Additional Feature:
HEIGHT DIM INCLUDE TERMINAL ALSO
Height:
12.7 mm
Length:
13.46 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
1
Number of Secondary Winding:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
5 V
Packing Method:
TR, EMBOSSED PLASTIC, 13 INCH
Primary Inductance:
160 µH
Surface Mount:
YES
Terminal Finish:
Tin/Silver - Tin - with Nickel barrier
Transformer Type:
SMPS TRANSFORMER
Width:
13 mm

FA2636-ALD Frequently Asked Questions (FAQs)

Coilcraft recommends a land pattern with a pad size of 1.3 mm x 1.3 mm and a spacing of 0.5 mm between pads. The recommended land pattern is available on Coilcraft's website.
The FA2636-ALD is a moisture-sensitive device. It's recommended to store the components in a dry environment (less than 20% RH) and to bake the components at 125°C for 24 hours before reflow soldering to remove any moisture that may have been absorbed.
The maximum reflow temperature for FA2636-ALD is 260°C. Exceeding this temperature can cause damage to the component.
Yes, the FA2636-ALD is designed for high-frequency applications up to 1 GHz. However, it's recommended to consult with Coilcraft's application notes and simulation tools to ensure the component meets the specific requirements of your application.
To ensure proper soldering, use a soldering iron with a temperature of 220°C to 240°C and a solder with a melting point of 180°C to 200°C. Apply a small amount of solder paste to the pads and use a reflow oven or a hot air gun to solder the component.
