FA2672-ALD - COILCRAFT

Description: Audio Transformers / Signal Transformers FA2672 SMT Flyback For Si3401, Si3402

Download FA2672-ALD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

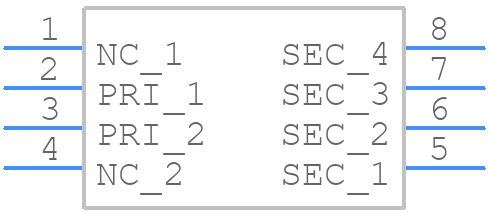

Symbol
FA2672-ALD - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
FA2672-ALD - COILCRAFT PCB footprint - Small Outline Packages - Small Outline Packages - FA2672-ALD
click to zoom
3D Models
FA2672-ALD - COILCRAFT - 3D model - Small Outline Packages - FA2672-ALD
click to zoom

FA2672-ALD Details

  • Manufacturer Part Number:

    FA2672-ALD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.1

  • Additional Feature:

    HEIGHT DIM INCLUDE TERMINAL ALSO

  • Height:

    11 mm

  • Input Voltage-Max:

    72 V

  • Input Voltage-Min:

    36 V

  • Length:

    12.7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    5 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Power Rating:

    10 W

  • Primary Inductance:

    40 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver - Tin - with Nickel barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    10.5 mm

FA2672-ALD Frequently Asked Questions (FAQs)

  • The recommended PCB land pattern for FA2672-ALD is a rectangular pad with a size of 2.5 mm x 1.5 mm, with a 0.5 mm clearance around the component.
  • To handle thermal considerations, ensure good airflow around the component, and consider using a thermal pad or heat sink if the component will be operating at high temperatures or high currents.
  • The maximum operating temperature range for FA2672-ALD is -40°C to +125°C, with a storage temperature range of -40°C to +150°C.
  • Yes, FA2672-ALD is designed to withstand high-vibration environments, but it's recommended to follow proper mounting and soldering techniques to ensure reliability.
  • To ensure reliability in a humid environment, apply a conformal coating to the component, and follow proper storage and handling procedures to prevent moisture absorption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FA2672-ALD Overview

Use the download button to access the FA2672-ALD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FA267, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
