FA2732-ALB footprint, schematic symbol and 3D model by COILCRAFT

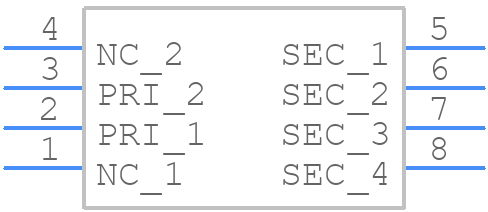

Symbol

click to zoom

PCB Footprints

FA2732-ALB - COILCRAFT PCB footprint - Other - Other - FA2732-ALB-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FA2732-ALB
Part Number FA2732-ALB
Manufacturer COILCRAFT
Pin Count 8
Part Category Transformer
Package Category Other
Footprint Name Other - FA2732-ALB-2
Released Date Sep 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FA2732-ALB Details

Manufacturer Part Number:
FA2732-ALB
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
0
Additional Feature:
HEIGHT DIM INCLUDE TERMINAL ALSO
Height:
11 mm
Input Voltage-Max:
72 V
Input Voltage-Min:
36 V
JESD-609 Code:
e2
Length:
12.7 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
1
Number of Secondary Winding:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
12 V
Packing Method:
TR
Power Rating:
10 W
Primary Inductance:
40 µH
Surface Mount:
YES
Terminal Finish:
Tin/Silver (Sn/Ag)
Transformer Type:
SMPS TRANSFORMER
Width:
10.5 mm

FA2732-ALB Frequently Asked Questions (FAQs)

Coilcraft provides a recommended land pattern for FA2732-ALB in their documentation, which can be found on their website. The recommended land pattern is designed to ensure optimal performance and reliability of the inductor.
FA2732-ALB has a rated operating temperature range of -40°C to +125°C. While it can be used in high-temperature applications, it's essential to consider the derating curves and temperature coefficient of inductance to ensure the inductor meets the required specifications.
FA2732-ALB is designed for high-frequency applications, with a rated frequency range of up to 1 GHz. However, it's crucial to consider the inductor's self-resonant frequency, Q factor, and impedance characteristics to ensure optimal performance in specific high-frequency applications.
Yes, FA2732-ALB is compatible with lead-free soldering processes. Coilcraft ensures that their products meet the requirements of the RoHS directive and are compatible with lead-free soldering processes.
The typical tolerance for the inductance value of FA2732-ALB is ±5%. However, it's essential to check the specific tolerance for the desired inductance value and batch of components, as it may vary.

Trust Checks

Expert Contribution

System Verified

Community Approved

FA2732-ALB Overview

Use the download button to access the FA2732-ALB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FA273, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
