FA2805-CLD footprint, schematic symbol and 3D model by COILCRAFT

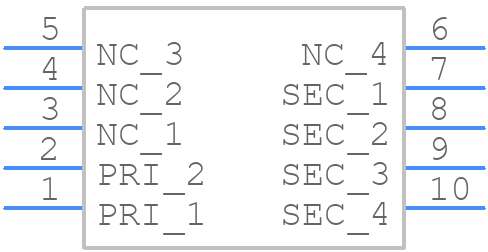

Symbol

click to zoom

PCB Footprints

FA2805-CLD - COILCRAFT PCB footprint - Other - Other - FA2805-CLD-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FA2805-CLD
Part Number FA2805-CLD
Manufacturer COILCRAFT
Pin Count 10
Part Category Transformer
Package Category Other
Footprint Name Other - FA2805-CLD-2
Released Date Aug 26, 2023
Last Modified Date Aug 27, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

FA2805-CLD Details

Manufacturer Part Number:
FA2805-CLD
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
Country Of Origin:
Mainland China
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.45
Additional Feature:
FLYBACK, HEIGHT DIMENSION INCLUDES TERMINALS ALSO
Height:
12.7 mm
Input Voltage-Max:
72 V
Input Voltage-Min:
36 V
Length:
13.46 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
1
Number of Secondary Winding:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
5 V
Packing Method:
TR, EMBOSSED PLASTIC, 13 INCH
Power Rating:
15 W
Primary Inductance:
40 µH
Surface Mount:
YES
Terminal Finish:
Tin/Silver - Tin - with Nickel barrier
Transformer Type:
SMPS TRANSFORMER
Width:
13 mm

FA2805-CLD Frequently Asked Questions (FAQs)

The recommended land pattern for the FA2805-CLD is a rectangular pad with a size of 2.5 mm x 1.5 mm, with a non-solder mask defined (NSMD) pad shape.
The FA2805-CLD is rated for operation up to 125°C, but derating is required for temperatures above 85°C. Consult the datasheet for specific derating guidelines.
To minimize the risk of mechanical stress affecting the inductor's performance, avoid bending or flexing the component during handling and assembly. Use a pick-and-place machine or a vacuum pickup tool to handle the component.
The maximum current rating for the FA2805-CLD is 2.8 A, but this value may vary depending on the operating frequency and temperature. Consult the datasheet for specific current rating information.
Yes, the FA2805-CLD is suitable for high-frequency applications up to 1 GHz. However, the inductor's performance may degrade at higher frequencies due to skin effect and proximity effect losses.

Trust Checks

Community Provided

System Verified

Community Approved

FA2805-CLD Overview

Use the download button to access the FA2805-CLD schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FA280, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
