FAD6263M1X - onsemi

Description: Shoot-Through Protection with adjustable Dead-Time; Separate Pull Up and Pull Down Outputs; Under Voltage Lock Out (UVLO) for Both Channels; Shutdown Pin with Latched Fault State and Separate Reset Pin; Extended Allowable Negative Vs down to −10V with Signal Propagation Capability; Separate Signal and Power Ground for Enhanced Noise Immunity; Fast Driver with max 100ns Propagation Delay; Matched Propagation Delay; Immune to min ±50V/ns dVs/dt; Gate Drive Supply Range from 10V to 22V; SOIC-16 Package with No

Download FAD6263M1X Model

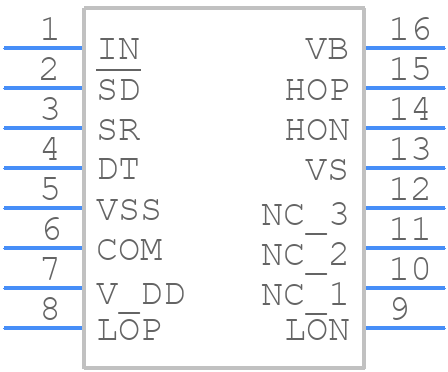

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAD6263M1X - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SO-16 CASE 751B-05 ISSUE K
click to zoom
3D Models
FAD6263M1X - onsemi  - 3D model - Small Outline Packages - SO-16 CASE 751B-05 ISSUE K
click to zoom

FAD6263M1X Details

  • Manufacturer Part Number:

    FAD6263M1X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8.4

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    3.3 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Max:

    22 V

  • Supply Voltage-Min:

    7.3 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    622 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL GOLD PALLADIUM

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.09 µs

  • Turn-on Time:

    0.23 µs

  • Width:

    3.9 mm

FAD6263M1X Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. It's also recommended to use a thermal pad on the bottom of the device.
  • The device requires a stable input voltage and a proper biasing circuit to ensure optimal performance. A voltage regulator and a bias resistor network can be used to set the desired bias point.
  • The recommended input impedance is 50 ohms, and the recommended output impedance is 50 ohms or lower. Impedance matching networks can be used to achieve optimal performance.
  • ESD protection can be achieved by using ESD protection diodes, such as the onsemi ESD1100, and following proper handling and storage procedures.
  • The recommended operating temperature range for the FAD6263M1X is -40°C to 125°C. Operating the device outside of this range may affect its performance and reliability.
