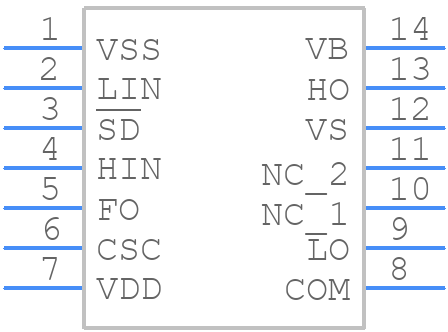

FAD8253MX-1 - onsemi

FAD8253MX-1 Details

• Manufacturer Part Number:

  FAD8253MX-1

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC-14

• Package Description:

  SOIC-14

• Manufacturer Package Code:

  751A-03

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  15 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  8

• High Side Driver:

  YES

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  HALF BRIDGE BASED IGBT DRIVER

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e4

• Length:

  8.65 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  PUSH-PULL

• Output Peak Current Limit-Nom:

  3.4 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.75 mm

• Supply Voltage-Max:

  18 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  15 V

• Supply Voltage1-Max:

  22 V

• Supply Voltage1-Min:

  10.6 V

• Supply Voltage1-Nom:

  15 V

• Surface Mount:

  YES

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  0.145 µs

• Turn-on Time:

  0.145 µs

• Width:

  3.9 mm
