A good PCB layout for the FAN102MY should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern under the device. The datasheet provides a recommended land pattern, but it's essential to follow good thermal design practices to ensure optimal heat dissipation.
To ensure proper biasing, make sure to follow the recommended operating conditions in the datasheet. This includes setting the input voltage (VIN) within the specified range, using a suitable input capacitor, and ensuring the output voltage (VOUT) is within the specified range. Additionally, ensure that the device is properly decoupled from the input and output capacitors.
While the datasheet doesn't specify a maximum allowable ripple voltage, a general rule of thumb is to keep the input ripple voltage below 10% of the nominal input voltage. Excessive input ripple can affect the device's performance, stability, and output voltage regulation.
The FAN102MY is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heatsinked, and the PCB is designed to handle the increased thermal stress.
To troubleshoot issues with the FAN102MY, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component values to ensure they match the recommended design. Use an oscilloscope to monitor the output voltage and current, and check for signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for guidance, or contact onsemi's technical support team.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN102MY Overview

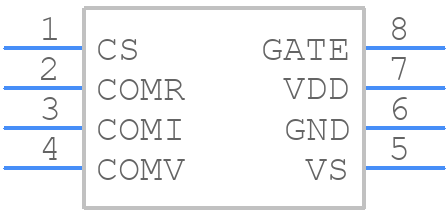

Use the download button to access the FAN102MY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN10,
or try a keyword search, such as Switching Regulator or Controllers
