A good PCB layout for the FAN3121CMPX involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a Kelvin connection for the output voltage sense pins to minimize noise and improve accuracy.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low equivalent series resistance (ESR) and is properly decoupled from the output voltage sense pins. Also, avoid using capacitors with high inductance or resistance in the output filter.
The maximum junction temperature (Tj) for the FAN3121CMPX is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
While the FAN3121CMPX can operate up to 125°C, it's not recommended for use in high-temperature environments above 85°C without proper derating and thermal management. Consult the datasheet for derating guidelines and consider using a heat sink or thermal interface material to reduce the junction temperature.
To troubleshoot issues with the FAN3121CMPX, start by verifying the input voltage, output voltage, and current sense resistor values. Check for proper PCB layout, component values, and soldering quality. Use an oscilloscope to monitor the output voltage and current waveforms, and consult the datasheet for troubleshooting guidelines and application notes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN3121CMPX Overview

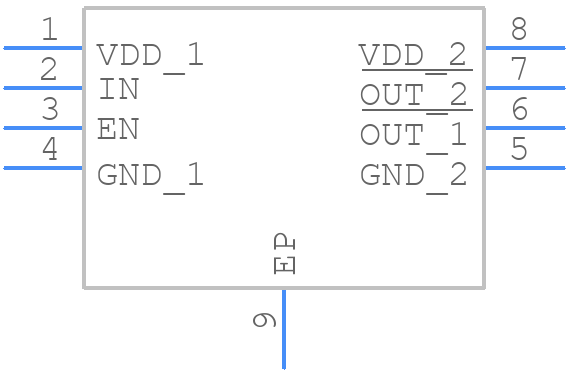

Use the download button to access the FAN3121CMPX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN31,
or try a keyword search, such as MOSFET Drivers
