FAN3181TMX - onsemi

Description: Built-in VCC UVLO Function; Cycle-by-Cycle Edge-Triggered Shutdown Function; Operating Junction Temperature Range of -40°C to 125°C; Desaturation Protection; Output In- Phase with Input Signal; Fault-Out and Shutdown Function; Active Miller Clamp; Built-in Over-Current Protection (OCP); Typically 1.5 A/2.0 A Sourcing/Sinking Current-Driving Capability at VCC = 15 V; Built-in Soft Turn-Off Function; Operating Supply Voltage 25 V

Download FAN3181TMX Model

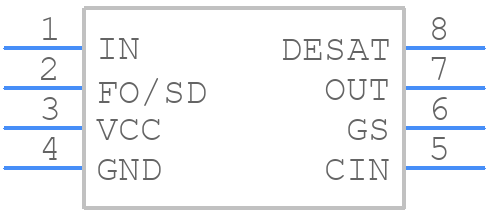

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAN3181TMX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC_8
click to zoom
3D Models
FAN3181TMX - onsemi  - 3D model - Small Outline Packages - SOIC_8
click to zoom

FAN3181TMX Details

  • Manufacturer Part Number:

    FAN3181TMX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751EB

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    19 Weeks

  • Date Of Intro:

    2017-03-10

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Max:

    25 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.022 µs

  • Turn-on Time:

    0.02 µs

  • Width:

    3.9 mm

FAN3181TMX Frequently Asked Questions (FAQs)

  • A good PCB layout for the FAN3181TMX involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a common mode choke or a ferrite bead to filter out high-frequency noise.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The EN pin should be tied to a logic high (e.g., 3.3V or 5V) to enable the device. The input voltage (VIN) should be within the recommended range of 2.7V to 5.5V.
  • The FAN3181TMX has a maximum current rating of 1A. However, the actual current handling capability may be limited by the PCB layout, thermal considerations, and the specific application. It's essential to ensure the device is operated within the recommended operating conditions to prevent overheating and damage.
  • To troubleshoot issues with the FAN3181TMX, start by verifying the power supply voltage, input voltage, and output voltage. Check for proper PCB layout, decoupling, and filtering. Use an oscilloscope to inspect the input and output waveforms for noise, ringing, or other anomalies. Consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The FAN3181TMX is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at high temperatures. It's essential to ensure proper thermal management, such as using a heat sink or thermal interface material, to maintain a safe operating temperature.
