Description:12ns / 9ns Typical Rise/Fall Times with 2.2nF Load; MillerDrive™ Technology ; Rated from –40°C to +125°C Ambient; Two Versions of Dual Independent Drivers: ; TTL Input Thresholds; Industry-Standard Pinouts; Double Current Capability by Paralleling Channels; Standard SOIC-8 Package; Dual Non-Inverting (FAN3214) ; 4.5 to 18V Operating Range; Typical Propagation Delay Under 20ns Matchedwithin 1ns to the Other Channel; Internal Resistors Turn Driver Off If No Inputs; 5A Peak Sink/Source at VDD = 12V; Dual Inver
A good PCB layout for the FAN3213TMX should minimize parasitic inductance and capacitance. Place the device close to the load, use short and wide traces for the output, and keep the input and output traces separate. A 4-layer PCB with a solid ground plane is recommended. Refer to the onsemi application note AND8325/D for more details.
To ensure stability, make sure the output capacitor is within the recommended range (22uF to 100uF) and has a low ESR. Also, add a 1uF to 10uF ceramic capacitor between the VIN pin and GND pin to filter out high-frequency noise. Additionally, ensure the PCB layout is well-designed and follows the recommended guidelines.
The maximum ambient temperature for the FAN3213TMX is 85°C. However, the device can operate up to 125°C junction temperature. Make sure to follow the thermal design guidelines and use a suitable heat sink if necessary to keep the junction temperature within the recommended range.
Yes, the FAN3213TMX is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that you follow the recommended design guidelines, testing, and validation procedures to meet the specific requirements of your application.
To troubleshoot issues with the FAN3213TMX, start by checking the input voltage, output voltage, and current. Verify that the output capacitor is within the recommended range and has a low ESR. Check the PCB layout for any signs of parasitic inductance or capacitance. Use an oscilloscope to measure the output voltage and current waveforms. Refer to the onsemi application note AND8325/D for more troubleshooting tips.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN3213TMX Overview

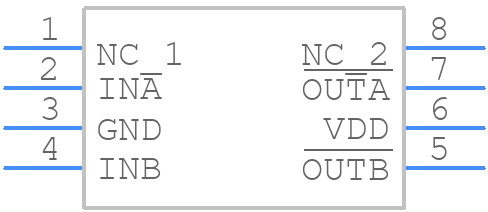

Use the download button to access the FAN3213TMX schematic symbol, PCB footprint, and 3D model.
