FAN3214TMX - onsemi

Description: 4.3A Sink / 2.8A Source at VOUT = 6V; Industry-Standard Pinouts; Dual Inverting (FAN3213); Two Versions of Dual Independent Drivers: ; 12ns / 9ns Typical Rise/Fall Times with 2.2nF Load; MillerDrive™ Technology ; Rated from –40°C to +125°C Ambient; TTL Input Thresholds; Dual Non-Inverting (FAN3214) ; 4.5 to 18V Operating Range; Typical Propagation Delay Under 20ns Matchedwithin 1ns to the Other Channel; 5A Peak Sink/Source at VDD = 12V; Double Current Capability by Paralleling Channels; Internal Resistors T

Download FAN3214TMX Model

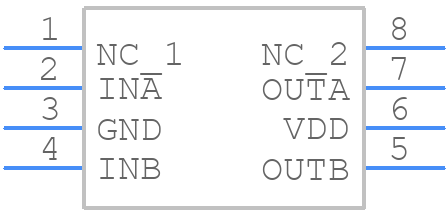

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAN3214TMX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8 CASE 751EB ISSUE A
click to zoom
3D Models
FAN3214TMX - onsemi  - 3D model - Small Outline Packages - SOIC8 CASE 751EB ISSUE A
click to zoom

FAN3214TMX Details

  • Manufacturer Part Number:

    FAN3214TMX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751EB

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.75

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.95 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.029 µs

  • Turn-on Time:

    0.029 µs

  • Width:

    4.9 mm

FAN3214TMX Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. It's also recommended to keep the thermal path short and use a thermal pad on the bottom of the device.
  • Ensure that the device is operated within the recommended temperature range (–40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, consider derating the device's power handling at high temperatures.
  • The FAN3214TMX has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
  • Yes, the FAN3214TMX is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a process that is compliant with IATF 16949.
  • Use a logic analyzer or oscilloscope to monitor the device's input and output signals. Check the power supply voltage, input signal integrity, and output load conditions. Consult the datasheet and application notes for troubleshooting guidelines.
