FAN3224CMX - onsemi

Description: 5A Peak Sink/Source at VDD = 12V ; Industry-Standard Pinouts ; 4.5 to 18V Operating Range ; 4.3A Sink / 2.8A Source at VOUT = 6V ; Choice of TTL or CMOS Input Thresholds ; Three Versions of Dual Independent Drivers: ; Dual Inverting + Enable (FAN3223) ; Dual Non-Inverting + Enable (FAN3224) ; Dual-Inputs(FAN3225) ; Internal Resistors Turn Driver Off If No Inputs ; MillerDrive™ Technology ; 12ns / 9ns Typical Rise/Fall Times with 2.2nF Load ; Typical Propagation Delay Under 20ns Matched within 1ns to the Oth

Download FAN3224CMX Model
Schematic

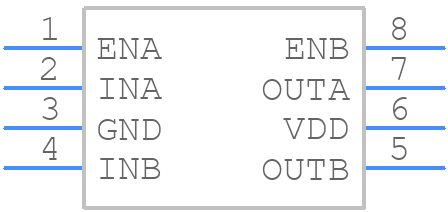

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAN3224CMX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC127P600X175-8M
click to zoom
3D Models
FAN3224CMX - onsemi  - 3D model - Small Outline Packages - SOIC127P600X175-8M
click to zoom

FAN3224CMX Details

  • Manufacturer Part Number:

    FAN3224CMX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751EB

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    1

  • Built-in Protections:

    UNDER VOLTAGE

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    4.3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.95 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.029 µs

  • Turn-on Time:

    0.029 µs

  • Width:

    3.9 mm
