FAN3224TM1X-F085 - onsemi

Description: SO8 with Exposed Pad; Industry-Standard Pinouts; 4.5-V to 18-V Operating Range; 5-A Peak Sink/Source at VDD = 12 V; Choice of TTL or CMOS Input Thresholds; Three Versions of Dual Independent Drivers:  -Dual Inverting + Enable (FAN3223)  -Dual Non-Inverting + Enable (FAN3224)  -Dual-Inputs (FAN3225); Internal Resistors Turn Driver Off If No Inputs; MillerDrive™ Technology; 12-ns / 9-ns Typical Rise/Fall Times (2.2-nF Load); Under 20-ns Typical Propagation Delay Matched within 1 ns to the Other Channel; Doubl

Download FAN3224TM1X-F085 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

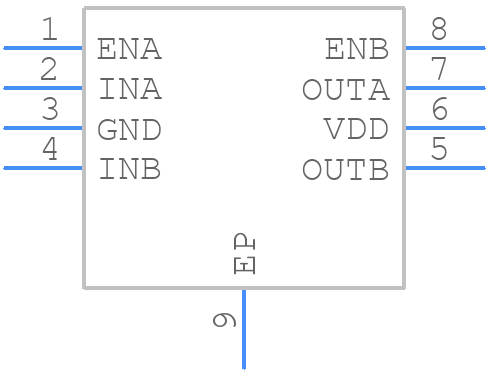

FAN3224TM1X-F085 - onsemi - PCB symbol
click to zoom
PCB Footprints
FAN3224TM1X-F085 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−8 EP CASE 751AC ISSUE D
click to zoom
3D Models
FAN3224TM1X-F085 - onsemi - 3D model - Small Outline Packages - SOIC−8 EP CASE 751AC ISSUE D
click to zoom

FAN3224TM1X-F085 Details

  • Manufacturer Part Number:

    FAN3224TM1X-F085

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 EP

  • Manufacturer Package Code:

    751AC

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2019-06-06

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • High Side Driver:

    NO

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.95 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    34 µs

  • Turn-on Time:

    34 µs

  • Width:

    3.9 mm

FAN3224TM1X-F085 Frequently Asked Questions (FAQs)

  • A good PCB layout for the FAN3224TM1X-F085 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the load. Additionally, it's recommended to use a common mode choke or ferrite bead to filter out high-frequency noise.
  • To ensure proper thermal management, it's recommended to attach the FAN3224TM1X-F085 to a heat sink or a metal pad on the PCB, and to use thermal interface material (TIM) to fill any air gaps. The device's thermal pad should be connected to a solid ground plane to help dissipate heat.
  • The maximum allowed voltage on the input pins of the FAN3224TM1X-F085 is 7V, although the recommended operating voltage is 5V. Exceeding this voltage may damage the device.
  • The FAN3224TM1X-F085 is rated for operation up to 125°C, but its performance may degrade at higher temperatures. It's recommended to derate the device's output current and voltage according to the temperature derating curve provided in the datasheet.
  • To troubleshoot issues with the FAN3224TM1X-F085, start by checking the input voltage, output current, and PCB layout for any errors or inconsistencies. Use an oscilloscope to measure the output voltage and current waveforms, and check for any signs of oscillation or ringing. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
