FAN3224TMPX - onsemi

Description: Industry-Standard Pinouts ; 4.5 to 18V Operating Range ; 5A Peak Sink/Source at VDD = 12V ; 4.3A Sink / 2.8A Source at VOUT = 6V ; Choice of TTL or CMOS Input Thresholds ; Three Versions of Dual Independent Drivers: ; Dual Inverting + Enable (FAN3223) ; Dual Non-Inverting + Enable (FAN3224) ; Dual-Inputs(FAN3225) ; Internal Resistors Turn Driver Off If No Inputs ; MillerDrive™ Technology ; 12ns / 9ns Typical Rise/Fall Times with 2.2nF Load ; Typical Propagation Delay Under 20ns Matched within 1ns to the Oth

Download FAN3224TMPX Model

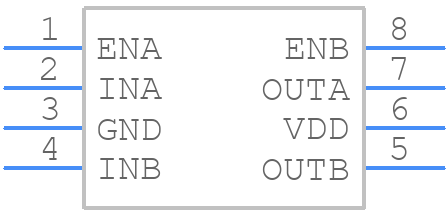

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAN3224TMPX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 8
click to zoom
3D Models
FAN3224TMPX - onsemi  - 3D model - Small Outline Packages - SOIC 8
click to zoom

FAN3224TMPX Details

  • Manufacturer Part Number:

    FAN3224TMPX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-8

  • Package Description:

    MLP-8

  • Manufacturer Package Code:

    511CD

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Built-in Protections:

    UNDER VOLTAGE

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    4.3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.95 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.029 µs

  • Turn-on Time:

    0.029 µs

  • Width:

    3 mm

FAN3224TMPX Frequently Asked Questions (FAQs)

  • A good PCB layout for the FAN3224TMPX involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a common ground point for the input and output grounds.
  • To ensure proper thermal management, it's recommended to attach the FAN3224TMPX to a heat sink or a metal pad on the PCB, and to use thermal interface material to fill any air gaps. The device should also be placed in a well-ventilated area to prevent overheating.
  • The maximum allowed voltage on the input pins of the FAN3224TMPX is 7V. Exceeding this voltage may damage the device.
  • The FAN3224TMPX is rated for operation up to 125°C. However, it's recommended to derate the device's power handling capability at high temperatures to prevent overheating and ensure reliable operation.
  • To troubleshoot issues with the FAN3224TMPX, check the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Also, check the thermal management of the device and ensure it's within the recommended operating temperature range.
