Description:MillerDrive™ Technology; Internal Resistors Turn Driver Off If No Inputs; 8-Lead 3x3 mm MLP or 8-Lead SOIC Package; 5-A Peak Sink/Source at VDD = 12 V; Three Versions of Dual Independent Drivers: -Dual Inverting + Enable (FAN3223) -Dual Non-Inverting + Enable (FAN3224) -Dual-Inputs (FAN3225); Double Current Capability by Paralleling Channels; 4.3-A Sink / 2.8-A Source at VOUT = 6 V; 4.5-V to 18-V Operating Range; Choice of TTL or CMOS Input Thresholds; Under 20-ns Typical Propagation Delay Matched within
A good PCB layout for the FAN3224TUMX-F085 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a common mode choke or a ferrite bead to filter out high-frequency noise.
To ensure proper thermal management, it's recommended to attach a heat sink to the device, especially in high-power applications. The heat sink should be designed to dissipate heat efficiently, and thermal interface material should be used to fill any gaps between the device and the heat sink.
Exceeding the maximum junction temperature of the FAN3224TUMX-F085 can lead to reduced device lifespan, decreased performance, and even permanent damage. It's essential to ensure the device operates within the recommended temperature range to maintain reliability and performance.
The FAN3224TUMX-F085 is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional testing and validation. It's recommended to consult with onsemi's application engineers to determine the device's suitability for such applications.
To troubleshoot issues with the FAN3224TUMX-F085, start by verifying the device's input and output voltages, checking for any signs of overheating, and ensuring the device is properly soldered and connected. If the issue persists, consult the device's datasheet and application notes, or contact onsemi's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN3224TUMX-F085 Overview

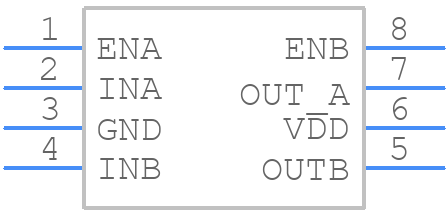

Use the download button to access the FAN3224TUMX-F085 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN32,
or try a keyword search, such as Peripheral Drivers
