A good PCB layout for the FAN3225CMPX involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the load. Additionally, it's recommended to use a low-ESR capacitor at the input and output pins to reduce ringing and improve stability.
To ensure proper thermal management, it's recommended to attach the FAN3225CMPX to a heat sink or a metal pad on the PCB, and to use thermal interface material (TIM) to fill any gaps. The device's thermal pad should be soldered to the PCB to provide a good thermal path. Additionally, ensure good airflow around the device to prevent overheating.
The maximum allowed voltage on the input pins of the FAN3225CMPX is 7V, although the recommended operating voltage is 5V. Exceeding this voltage may damage the device or affect its performance.
Yes, the FAN3225CMPX is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is designed to operate in harsh environments. However, it's recommended to consult with onsemi's application engineers to ensure the device meets the specific requirements of your application.
To troubleshoot issues with the FAN3225CMPX, start by checking the PCB layout and ensuring that the input and output capacitors are properly sized and placed. Verify that the device is properly soldered and that there are no solder bridges or opens. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or ringing. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN3225CMPX Overview

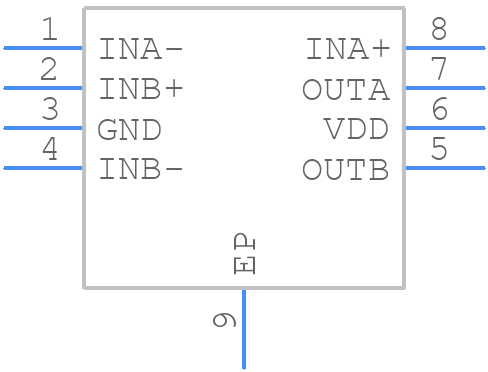

Use the download button to access the FAN3225CMPX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN32,
or try a keyword search, such as MOSFET Drivers
