FAN3225TMX - onsemi

Description: Typical Propagation Delay Under 20ns Matched within 1ns to the Other Channel ; Rated from –40°C to +125°C Ambient; Industry-Standard Pinouts ; 4.3A Sink / 2.8A Source at VOUT = 6V ; Dual Non-Inverting + Enable (FAN3224) ; Internal Resistors Turn Driver Off If No Inputs ; 8-Lead 3x3mm MLP or 8-Lead SOIC Package ; Three Versions of Dual Independent Drivers: ; MillerDrive™ Technology ; 12ns / 9ns Typical Rise/Fall Times with 2.2nF Load ; Double Current Capability by Paralleling Channels ; 4.5 to 18V Operating

Download FAN3225TMX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

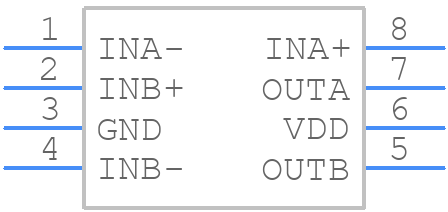

FAN3225TMX - onsemi - PCB symbol
click to zoom
PCB Footprints
FAN3225TMX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-LEAD, SOIC, JDEC MS-012, 0.150" NARROW BODY
click to zoom
3D Models
FAN3225TMX - onsemi - 3D model - Small Outline Packages - 8-LEAD, SOIC, JDEC MS-012, 0.150" NARROW BODY
click to zoom

FAN3225TMX Details

  • Manufacturer Part Number:

    FAN3225TMX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751EB

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    1

  • Built-in Protections:

    UNDER VOLTAGE

  • High Side Driver:

    NO

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    4.3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.95 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.029 µs

  • Turn-on Time:

    0.029 µs

  • Width:

    3.9 mm

FAN3225TMX Frequently Asked Questions (FAQs)

  • A good PCB layout for the FAN3225TMX involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a common mode choke or a ferrite bead to filter out high-frequency noise.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The EN pin should be tied to a logic high (e.g., 3.3V or 5V) to enable the device. The input and output capacitors should be selected based on the specific application requirements.
  • The maximum allowable power dissipation for the FAN3225TMX is 1.4W. This can be calculated based on the input voltage, output current, and package thermal resistance. It's essential to ensure the device operates within the recommended power dissipation limits to prevent overheating and ensure reliability.
  • The FAN3225TMX is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's power dissipation and ensure proper heat sinking to maintain a safe operating temperature.
  • To troubleshoot issues with the FAN3225TMX, start by verifying the input voltage, output current, and PCB layout. Check for proper decoupling, input and output capacitor selection, and ensure the device is properly biased. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting common issues.
