A good PCB layout for the FAN3229CMPX involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the load. Additionally, it's recommended to use a common-mode choke or ferrite bead to filter out high-frequency noise.
To ensure proper thermal management, it's essential to provide a good thermal path from the device to a heat sink or the PCB. This can be achieved by using a thermal pad or thermal tape, and ensuring that the device is mounted on a PCB with a good thermal conductivity. The maximum junction temperature (TJ) should not exceed 150°C.
The recommended input capacitor value is 1uF to 10uF, and it's recommended to use a low-ESR ceramic capacitor (X5R or X7R dielectric) to minimize voltage ripple and ensure stable operation.
The FAN3229CMPX is rated for operation up to 125°C, but it's recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet. Additionally, it's essential to ensure proper thermal management to prevent overheating.
To troubleshoot issues with the FAN3229CMPX, it's recommended to check the input voltage, output voltage, and current, as well as the PCB layout and component values. Additionally, it's helpful to use an oscilloscope to observe the output voltage and current waveforms, and to consult the datasheet and application notes for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN3229CMPX Overview

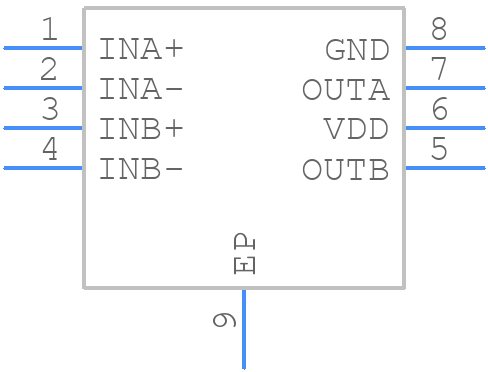

Use the download button to access the FAN3229CMPX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN32,
or try a keyword search, such as MOSFET Drivers
