FAN3229TMX - onsemi

Description: 12ns / 9ns Typical Rise/Fall Times with 1nF Load ; Dual Inverting + Enable (FAN3226) ; Four Versions of Dual Independent Drivers: ; Typical Propagation Delay Under 20ns Matched within 1ns to the Other Channel ; 2.4A Sink / 1.6A Source at VOUT = 6V ; 3A Peak Sink/Source at VDD = 12V ; Industry-Standard Pinouts ; MillerDrive™ Technology ; Dual-Inputs in Two Pin-Out Configurations:   ■ Compatible with FAN3225x (FAN3228)   ■ Compatible with TPS2814D (FAN3229) ; 4.5 to 18V Operating Range ; Dual Non-Inverting +

Download FAN3229TMX Model

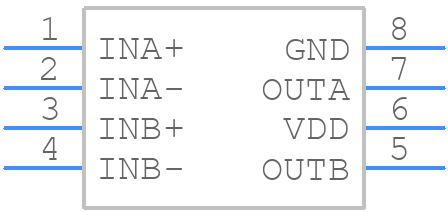

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAN3229TMX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8SOIC
click to zoom
3D Models
FAN3229TMX - onsemi  - 3D model - Small Outline Packages - 8SOIC
click to zoom

FAN3229TMX Details

  • Manufacturer Part Number:

    FAN3229TMX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751EB

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    1

  • Built-in Protections:

    TRANSIENT

  • High Side Driver:

    NO

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.032 µs

  • Turn-on Time:

    0.034 µs

  • Width:

    3.9 mm
