Part Image

FAN3240TMX - onsemi

Description: Enable Pin for Operational Flexibility; 8-V to 60-V Operation for Unregulated Supply Line; 8-Lead SOIC Package; Internal Thermal Shutdown Protection; Integrated Linear Regulator for Isolated or Non-Isolated Meter Power Designs; Rated from –40°C to +105°C Ambient; TTL Input Threshold; Accurate Input Qualification Time with Output Pulse Width Limit (Factory Adjustable); XOR Protection; Strong DC Current to Break through Welded Contacts without using External Switches

Download FAN3240TMX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

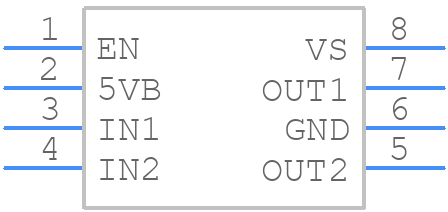

Symbol
FAN3240TMX - onsemi - PCB symbol
click to zoom
PCB Footprints
FAN3240TMX - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Small Outline Integrated Circuit (SOIC)
click to zoom
3D Models
FAN3240TMX - onsemi - 3D model - Small Outline Packages - 8-Lead Small Outline Integrated Circuit (SOIC)
click to zoom

FAN3240TMX Details

  • Manufacturer Part Number:

    FAN3240TMX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751EB

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Driver Number of Bits:

    2

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    1.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    40 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    9 µs

  • Turn-on Time:

    9 µs

  • Width:

    3.9 mm

FAN3240TMX Frequently Asked Questions (FAQs)

  • A good PCB layout for the FAN3240TMX involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a common mode choke or a ferrite bead to filter out high-frequency noise.
  • To ensure proper thermal management, it's recommended to attach a heat sink to the device, especially in high-power applications. The heat sink should be designed to dissipate heat efficiently, and thermal interface material (TIM) should be used to fill any gaps between the device and the heat sink.
  • If the enable pin (EN) is not used, the device will always be enabled, which may lead to increased power consumption and heat generation. It's recommended to use the enable pin to control the device's operation and reduce power consumption when not in use.
  • To troubleshoot issues with the FAN3240TMX, start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output. If issues persist, consult the datasheet and application notes for guidance.
  • Yes, the FAN3240TMX is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to follow the recommended operating conditions, PCB layout, and thermal management guidelines to ensure reliable operation.
