FAN5341UMPX - onsemi

Description: 2.7 V to 5.5 V Input Voltage Range; Input Under-Voltage Lockout (UVLO); Asynchronous Boost Converter; 1.2 MHz Fixed Switching Frequency; Drives 3 to 5 LEDs in Series; 32 Linear Steps ; Up to 500 mW Output Power; Thermal Shutdown (TSD) Protection; Single-Wire Digital Control Interface to Set LED Brightness Levels; Output Over-Voltage Protection (OVP); Internal Schottky Diode; Short-Circuit Detection; Soft-Start Capability

Download FAN5341UMPX Model

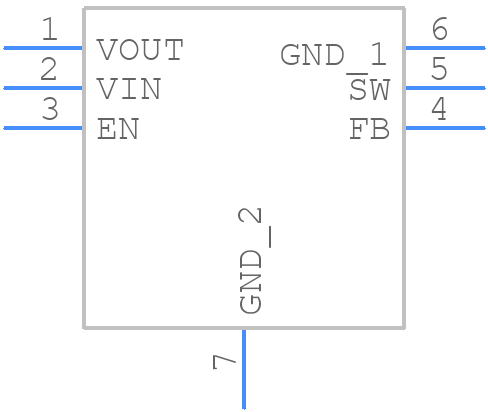

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAN5341UMPX - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - UMLP-6 PACKAGE
click to zoom
3D Models
FAN5341UMPX - onsemi  - 3D model - Small Outline No-lead - UMLP-6 PACKAGE
click to zoom

FAN5341UMPX Details

  • Manufacturer Part Number:

    FAN5341UMPX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN-6

  • Package Description:

    UMLP-6

  • Manufacturer Package Code:

    517DS

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.89

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    5

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

FAN5341UMPX Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the FAN5341UMPX near a thermal pad or a heat sink, ensuring good thermal conductivity. Keep the device away from high-current paths and avoid routing high-frequency signals near the device. Use a solid ground plane and a thermal relief pattern to improve heat dissipation.
  • To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value (at least 10uF) and low ESR. Also, ensure that the feedback resistors are of high precision and low tolerance, and the feedback network is properly compensated.
  • The maximum allowable input voltage ripple for the FAN5341UMPX is 10% of the input voltage. Exceeding this limit may affect the device's performance and stability. It's recommended to use input filtering or a pre-regulator to reduce the input voltage ripple.
  • The FAN5341UMPX is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and ensure proper thermal management to ensure reliable operation in high-temperature environments.
  • To troubleshoot oscillations or instability issues, check the PCB layout for any signs of resonance or noise coupling. Ensure that the output capacitor is of sufficient value and low ESR, and the feedback network is properly compensated. Also, verify that the input voltage is within the recommended range and the device is not overheating.
