Description:50 mV Drop-out at 15 mA IOUT; Better than 3% Matching between Channels; 30 mA Maximum Output Current; • Linear Current-Sink LED Driver that Supports 4 LED Outputs• Current Sink Driver for Each LED Output:; External RSET• Single-Wire Digital Control Interface for Easy Programming• Less than 1 µA Shut-Down Current• Short-Circuit, Under-Voltage, and Thermal Protection• Wide Input Voltage Range: 2.7 to 5.5 V
A good PCB layout for the FAN5624UMPX should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper coverage around the device. Avoid routing high-current traces under the device, and use thermal vias to dissipate heat efficiently.
To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R). Additionally, minimize the distance between the output capacitor and the device, and use a low-ESR capacitor to reduce output voltage ripple.
The maximum safe operating junction temperature for the FAN5624UMPX is 150°C. Exceeding this temperature may reduce the device's lifespan or cause permanent damage.
Yes, the FAN5624UMPX is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100, a standard for automotive-grade ICs. However, ensure that your design meets the specific requirements of your application, including temperature range, vibration, and other environmental factors.
To troubleshoot output voltage instability or oscillations, check the input voltage, output capacitor value and type, and the PCB layout. Ensure that the device is properly decoupled, and the output capacitor is placed close to the device. Also, verify that the input voltage is within the recommended range and that the device is not overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN5624UMPX Overview

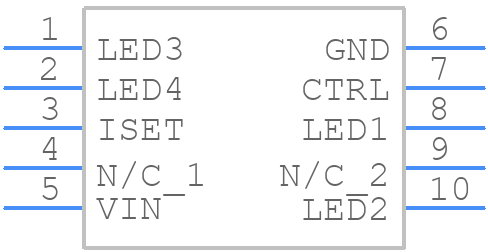

Use the download button to access the FAN5624UMPX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FAN56,
or try a keyword search, such as Display Drivers
