Description:• Linear Current-Sink LED Driver that Supports 6 LED Outputs• Current Sink Driver for Each LED Output:; External RSET; 50 mV Drop-out at 15 mA IOUT; 30 mA Maximum Output Current; Single-Wire Digital Control Interface for Easy Programming• 32 Linear Steps of Dimming Control• Less than 1 µA Shut-Down Current• Short-Circuit, Under-Voltage, and Thermal Protection• Wide Input Voltage Range: 2.7 to 5.5 V; Better than 3% Matching between Channels
A good PCB layout for the FAN5626LX involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. It's also recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog circuits.
To optimize the compensation network, start by selecting the desired crossover frequency and phase margin. Then, use the datasheet's compensation network design equations to calculate the required values for RCOMP and CCOMP. Finally, fine-tune the values through simulation or experimentation to achieve the desired stability and transient response.
The maximum allowed voltage on the EN pin is 6V. To ensure it's not exceeded, use a voltage divider or a zener diode to limit the voltage to a safe level. Additionally, make sure to follow proper PCB layout practices to minimize noise and voltage spikes on the EN pin.
To handle thermal management, ensure good airflow around the IC, and use a heat sink if necessary. Monitor the junction temperature (TJ) and adjust the operating conditions to keep TJ below the maximum rating of 150°C. Also, consider using thermal interface materials to improve heat transfer between the IC and the heat sink.
When selecting input and output capacitors, consider the voltage rating, capacitance value, and equivalent series resistance (ESR). Choose capacitors with a high voltage rating, low ESR, and a capacitance value that meets the datasheet's recommended range. Also, ensure the capacitors are placed close to the IC to minimize parasitic inductance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FAN5626LX Overview

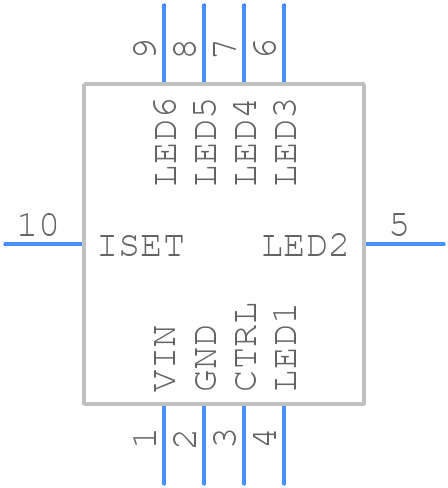

Use the download button to access the FAN5626LX schematic symbol, PCB footprint, and 3D model.
