FAN6204MY - onsemi

Description: FAN6204MY, MOSFET Power Driver,, 30 V dc, 8-Pin SOP

Download FAN6204MY Model

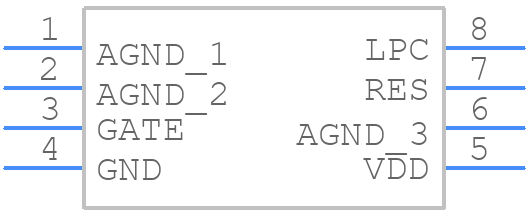

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FAN6204MY - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Small Outline Integrated Circuit (SOIC)
click to zoom

FAN6204MY Details

  • Manufacturer Part Number:

    FAN6204MY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28.5 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    8 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    65 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

FAN6204MY Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal path short and use a thermal pad on the bottom of the IC.
  • Ensure the input voltage is within the recommended range (4.5V to 18V), and the enable pin is properly biased (logic high or low) to avoid unwanted shutdown.
  • The maximum current rating is 4A, but it's recommended to derate the current based on the ambient temperature and PCB thermal design.
  • Use a voltage regulator or a transient voltage suppressor (TVS) to protect the device from voltage transients and ensure the input voltage remains within the recommended range.
  • A 10uF to 22uF ceramic capacitor is recommended for the output filter, depending on the specific application requirements and noise tolerance.
